WARN
Warn 9.0 ROC Winch 71550
Warn 9.0 ROC Winch 71550
Regular price
$2,645.99 USD
Regular price
Sale price
$2,645.99 USD
Quantity
Couldn't load pickup availability

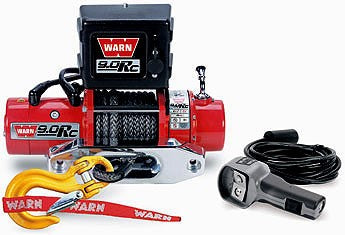

WARN 9.0Rc Rock Crawling Winch Competitive rock crawling means tackling tough climbs and tight turns. That's why rock crawling rigs need a low-profile, lightweight Winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. Like its professional counterpart, the 9.0R, the 9.0Rc is a short-drum, 9,000 lb. capacity Winch that features a 4.8 hp Series Wound Motor for fast line speeds. An exclusive, multi-segment Cam Actuated Brake gives positive operator control during Winch ing. The 9.0Rc comes standard with 50' of 3/8" diameter synthetic rope. Other features include: a chromate undercoating and gloss red paint that provide superior corrosion resistance; a rugged, 360-degree swivel hook and thimble; an aluminum hawse fairlead; extreme duty Winch sealing; and a "Ballistic Nylon" Sliding Sleeve that provides extra protection against abrasion and wear. 9.0Rc Rock Crawling Winch Specifications Part Numbers: 71550 Rated Line Pull: 9000 lbs. single-line Motor: Series Wound 12V 4.8hp Remote Control: Remote switch, 12' lead Geartrain: 3-Stage Planetary Gear Ratio: 216:1 Lubrication: Aeroshell #17 Clutch (freespooling): Sliding Ring Gear Brake: Automatic Direct Drive Cone Drum Diameter/Length: 2.75"/4.75" Weight: 54 lbs. Wire Rope: 50', 3/8" Synthetic Rope Fairlead: Polished Aluminum Hawse Recommended Battery: 650 CCA minimum for Winch ing Battery Leads: 2 gauge, 72" Finish: Chromate with High-Gloss red paint Nuts/Bolts: 39625 PERFORMANCE SPECS Line Pull Lbs. Line Speed FT./min Motor Current Pull by layer layer/Lbs. 0 42 80 amps 1/900 2000 16 200 amps 2/7280 4000 11.9 285 amps 3/6670 6000 9.79 350 amps 4/6230 8000 8.01 435 amps 9000 6.40 465 amps Above performance specs are based on first layer of drum
Coupon codes are not good for Winches.
Part Number 71550
