Dana/Spicer
1310 Series CV End Yoke for Jeep Dana 20 | 26 Spline | Dana Spicer 2-4-4341
1310 Series CV End Yoke for Jeep Dana 20 | 26 Spline | Dana Spicer 2-4-4341
Couldn't load pickup availability

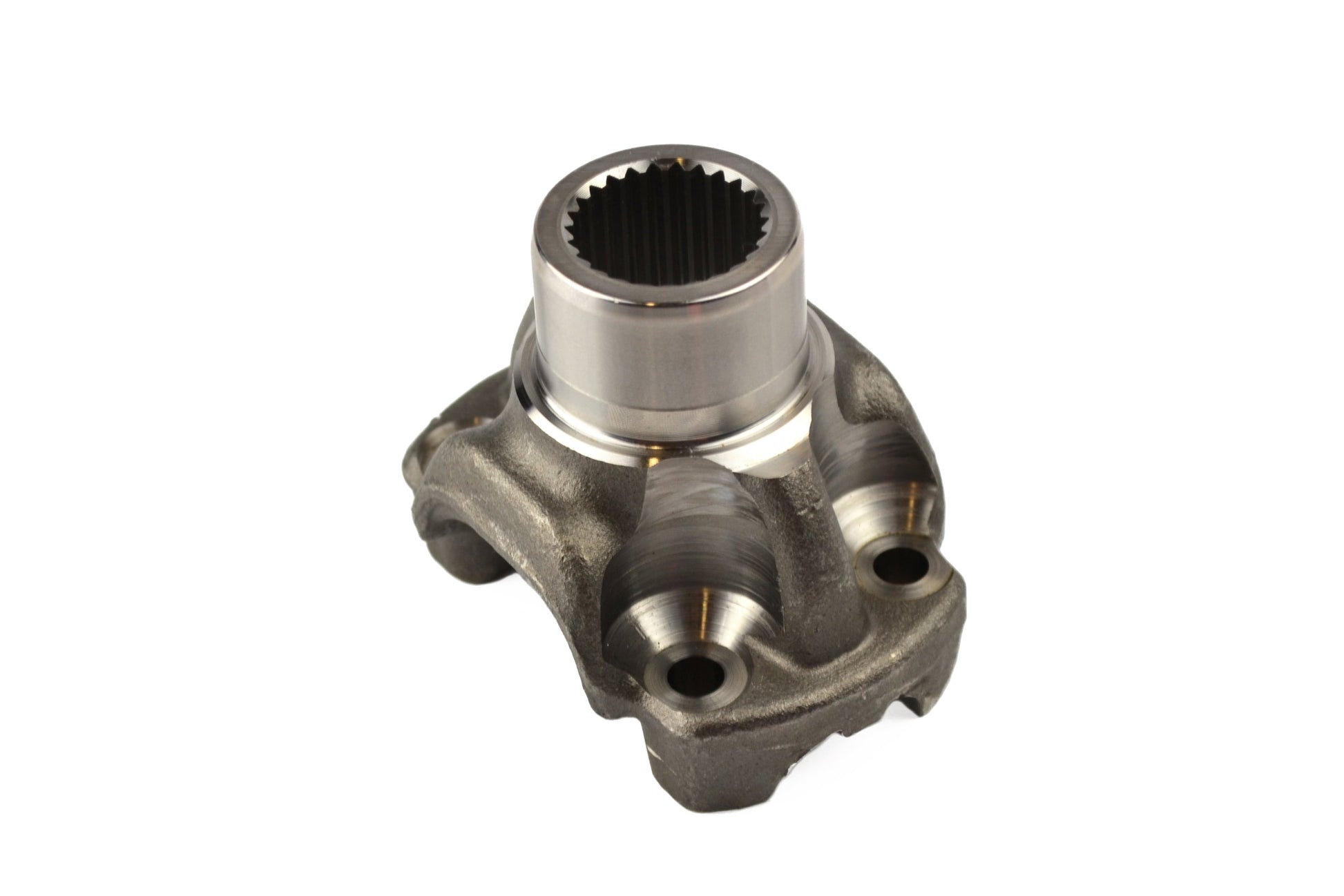

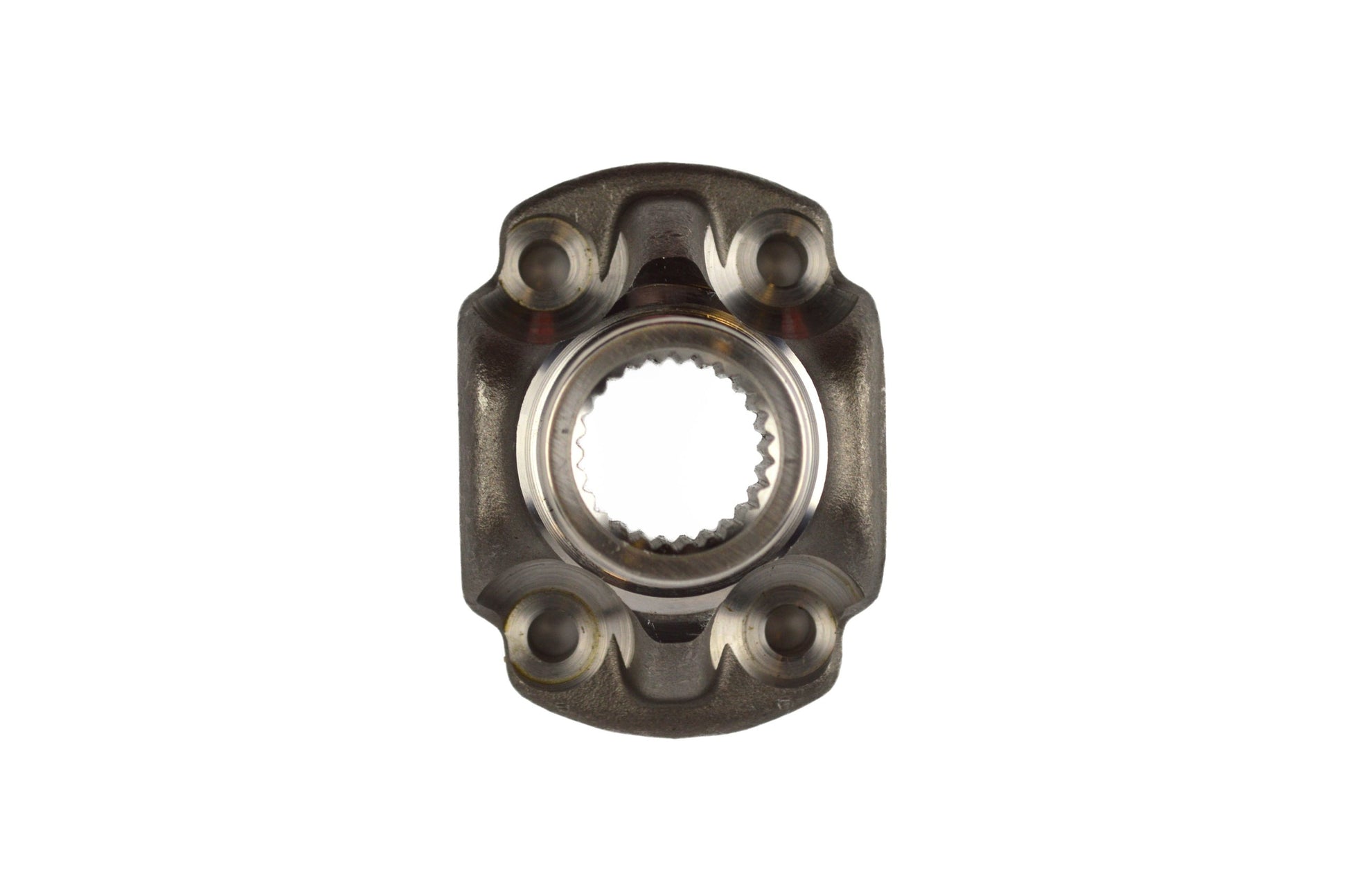

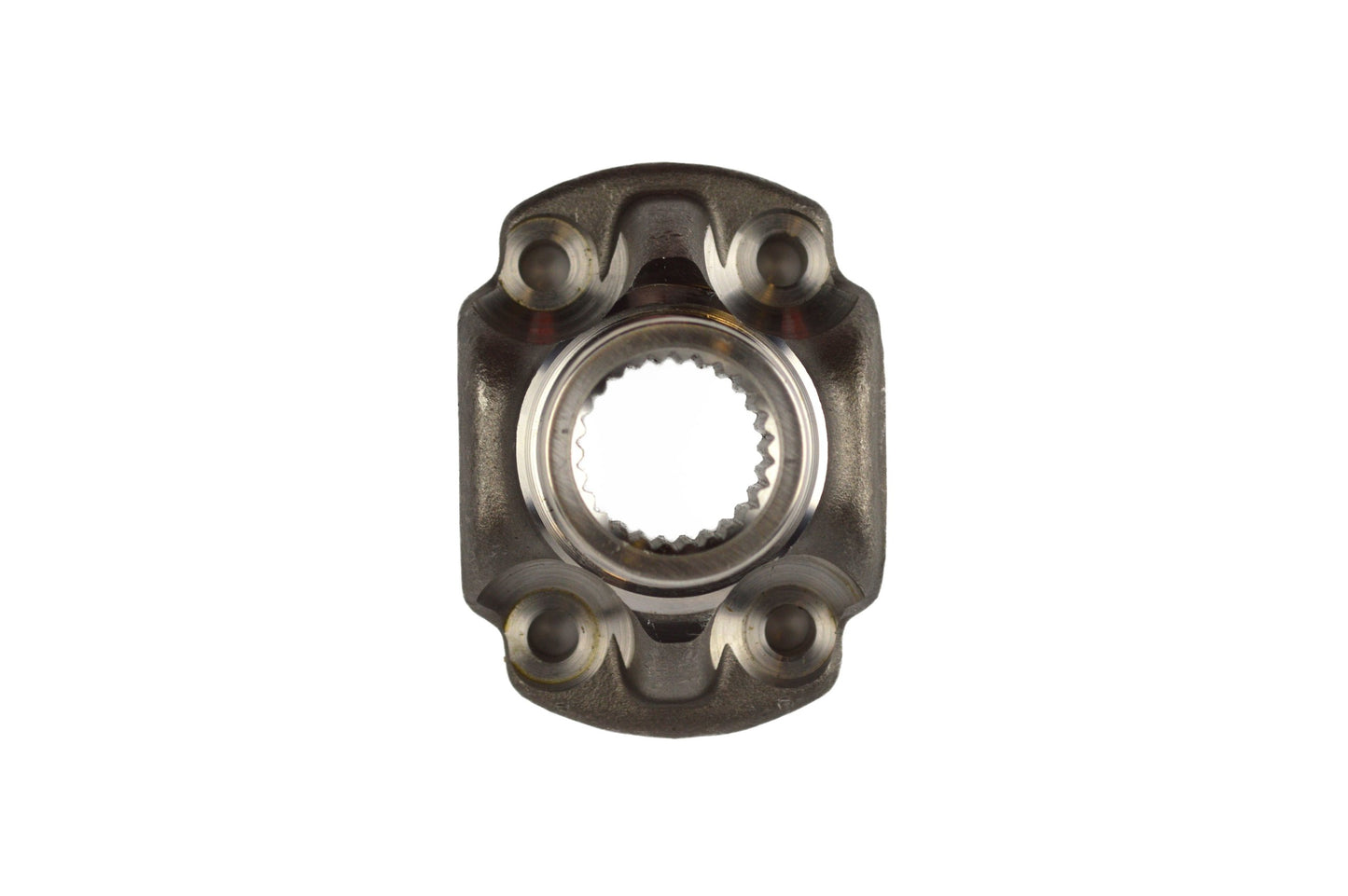

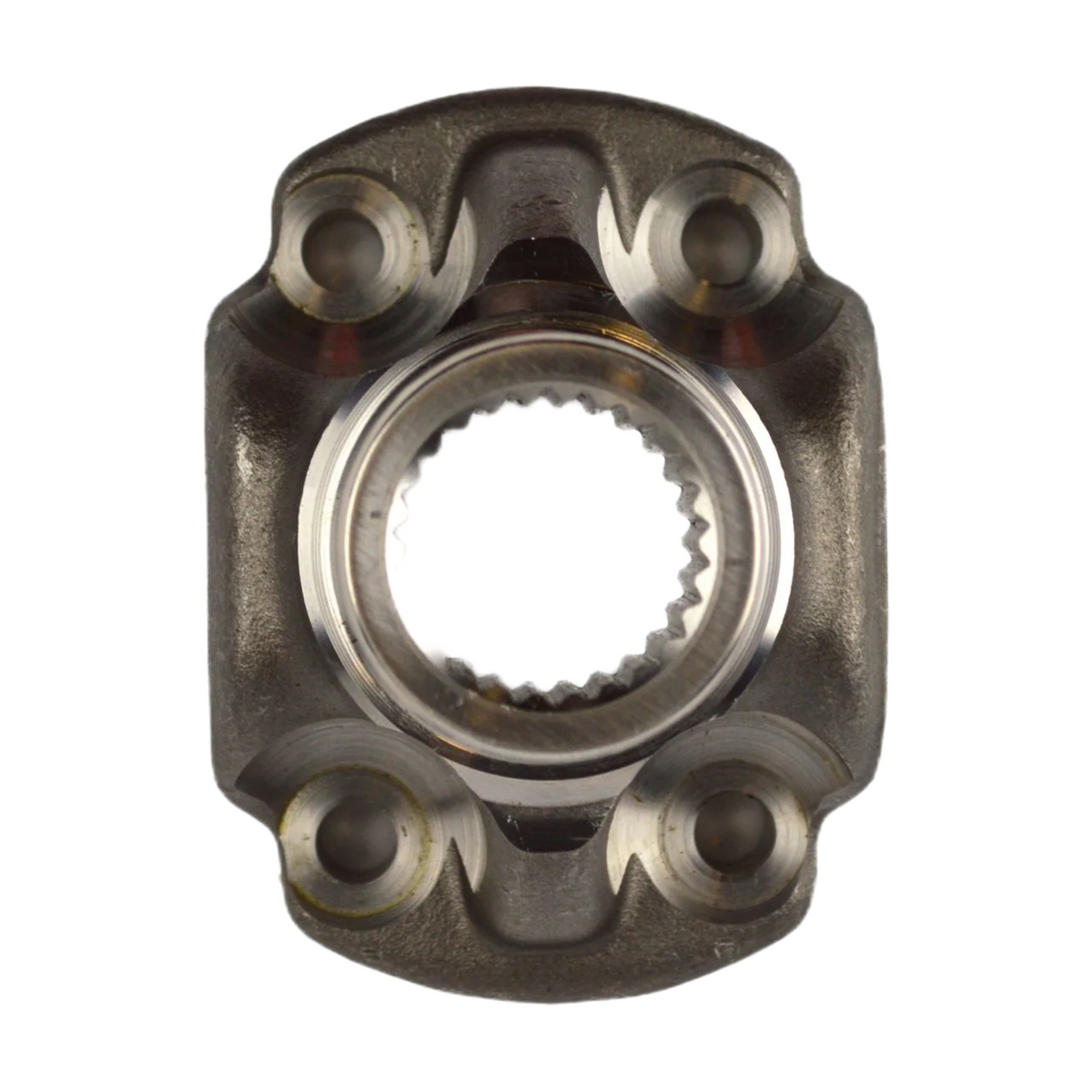

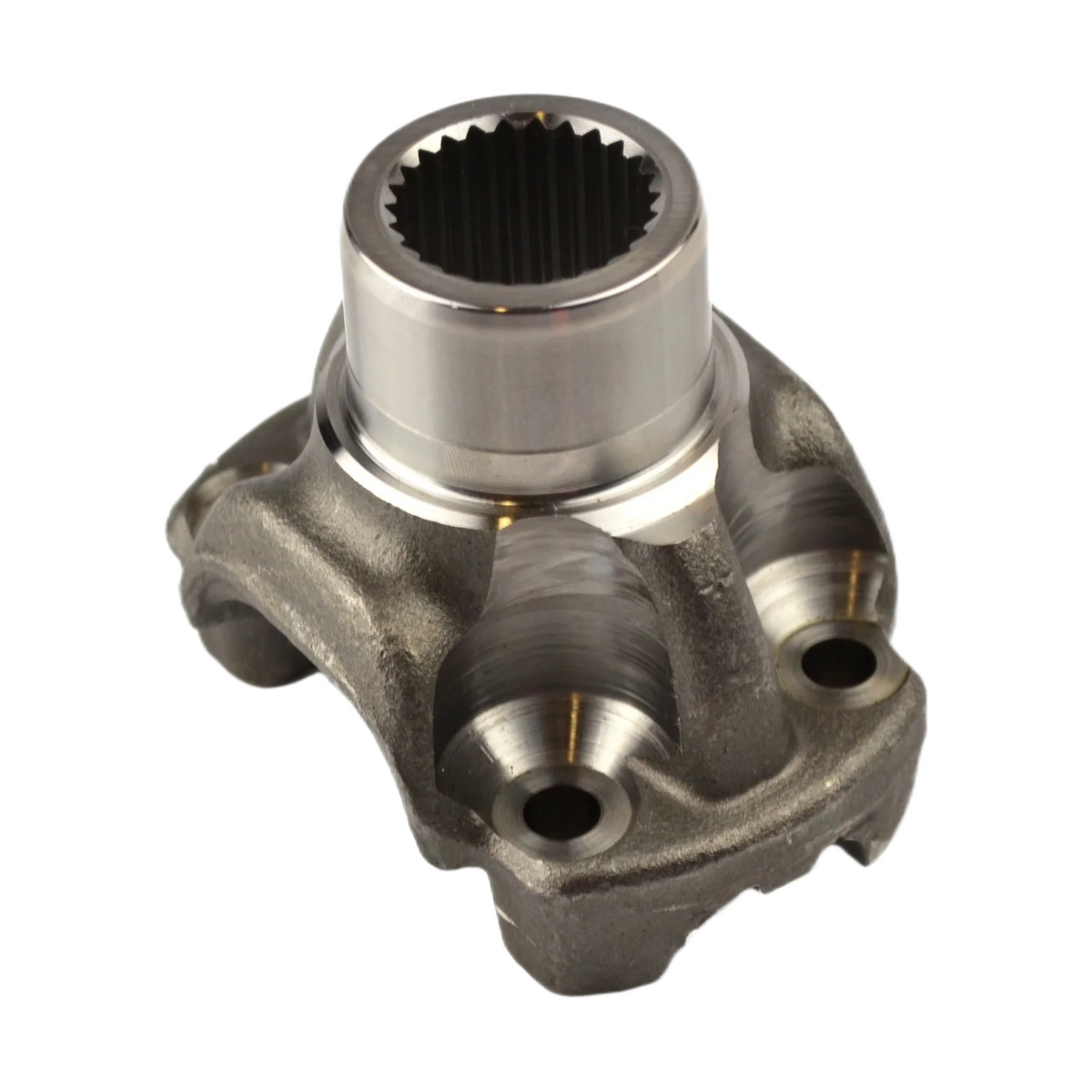

1310 Series CV End Yoke
Dana Spicer 2-4-4341 • 26 Spline • Spicer-Style CV
Product Overview
Dana Spicer 2-4-4341 1310 Series CV end yoke featuring a 26-spline splined-hole configuration. The supplied Dana Spicer application information identifies this yoke for a Jeep Dana 20 transfer case with a 26-spline output.
Product Details
Dimensions & Specifications
1310 Series U-Joint Dimensions
- Overall Width: 3-7/32" (3.219")
- Bearing Cap Diameter: 1-1/16" (1.062")
Additional Information
Important Application Note
Dana 300 compatibility needs verification. The original product information describes this yoke for installation of a Spicer-style CV head on the front or rear output of a Dana 300 transfer case. However, the supplied Dana Spicer application information identifies 2-4-4341 as a 1310 Series CV yoke for a Jeep Dana 20 transfer case with a 26-spline output.
Verify the transfer case, 26-spline output configuration, dimensions, and Dana Spicer part number 2-4-4341 before ordering.
