PORC Off Road Products

Rear Dana 35 Pinion Yoke Kit w/ 1310 U-Joint for 87-06 Jeep YJ TJ XJ MJ ZJ

Rear Dana 35 Pinion Yoke Kit w/ 1310 U-Joint for 87-06 Jeep YJ TJ XJ MJ ZJ

$114.89 USD
$114.89 USD
Sale Sold out

PORC Rear Dana 35 Pinion Yoke Kit with 1310 U-Joint

Includes Pinion Yoke, Spicer 1310 U-Joint, Seal, Crush Sleeve, Pinion Nut & Strap Hardware

Product Overview

This PORC rear Dana 35 pinion yoke kit combines the major components used when replacing or servicing the rear pinion yoke on select Jeep models equipped with a Dana 35 rear axle. Built around the 83503318 1310 Series pinion yoke, this version also includes a genuine Spicer 5-153X 1310 Series U-joint.

The kit also includes the matching rear pinion seal, pinion crush sleeve, pinion nut, and strap-style U-joint retaining hardware, giving you a matched package for the yoke and related service components.

Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below to make component identification and application verification easier.

Compatibility

  • 1997-2006 Jeep Wrangler TJ with Dana 35 rear axle
  • 1987-1995 Jeep Wrangler YJ with Dana 35 rear axle and 1310 Series U-joint
  • 1984-1996 Jeep Cherokee XJ with Dana 35 rear axle and 2.97" yoke height
  • 1986-1992 Jeep Comanche MJ with Dana 35 rear axle and 2.97" yoke height
  • 1993-1996 Jeep Grand Cherokee ZJ with Dana 35 rear axle and 2.97" yoke height

Axle Application: Dana 35 rear axle

U-Joint Series: 1310 Series

U-Joint Size: 3.219" wide with 1.062" bearing caps

U-Joint Retention: Strap-and-bolt style

Component Part Number Cross-Reference

Pinion Yoke

Crown / OE: 83503318
Omix: 16580.20
Dana-Spicer: 2-4-4601-1
Yukon: YY M35-1310-26S

1310 Series U-Joint

Dana-Spicer: 5-153X
Series: 1310
Width: 3.219"
Bearing Cap Diameter: 1.062"
Type: Greasable

Rear Pinion Seal

Crown / OE: 83504946
Omix: 16521.10
Dana-Spicer: 43085
Yukon: YMS470331N

Pinion Crush Sleeve

Crown / OE: 3175779
Omix: 16512.59
Dana-Spicer: 42102
Yukon: YSPCS-010

Pinion Nut

Crown / OE: 3182601
Omix: 16584.03
Dana-Spicer: 44189
Yukon: YSPPN-012

U-Joint Strap Hardware Kit

Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004

Kit Highlights

  • Complete rear Dana 35 pinion yoke service kit with genuine Spicer 5-153X 1310 Series U-joint
  • Includes pinion yoke, U-joint, rear pinion seal, crush sleeve, pinion nut, and strap-style retaining hardware
  • 1310 Series pinion yoke references 83503318, 16580.20, 2-4-4601-1, and YY M35-1310-26S
  • Genuine Spicer 5-153X greasable 1310 Series U-joint included
  • Rear pinion seal references 83504946, 16521.10, 43085, and YMS470331N
  • Crush sleeve references 3175779, 16512.59, 42102, and YSPCS-010
  • Pinion nut references 3182601, 16584.03, 44189, and YSPPN-012
  • Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004

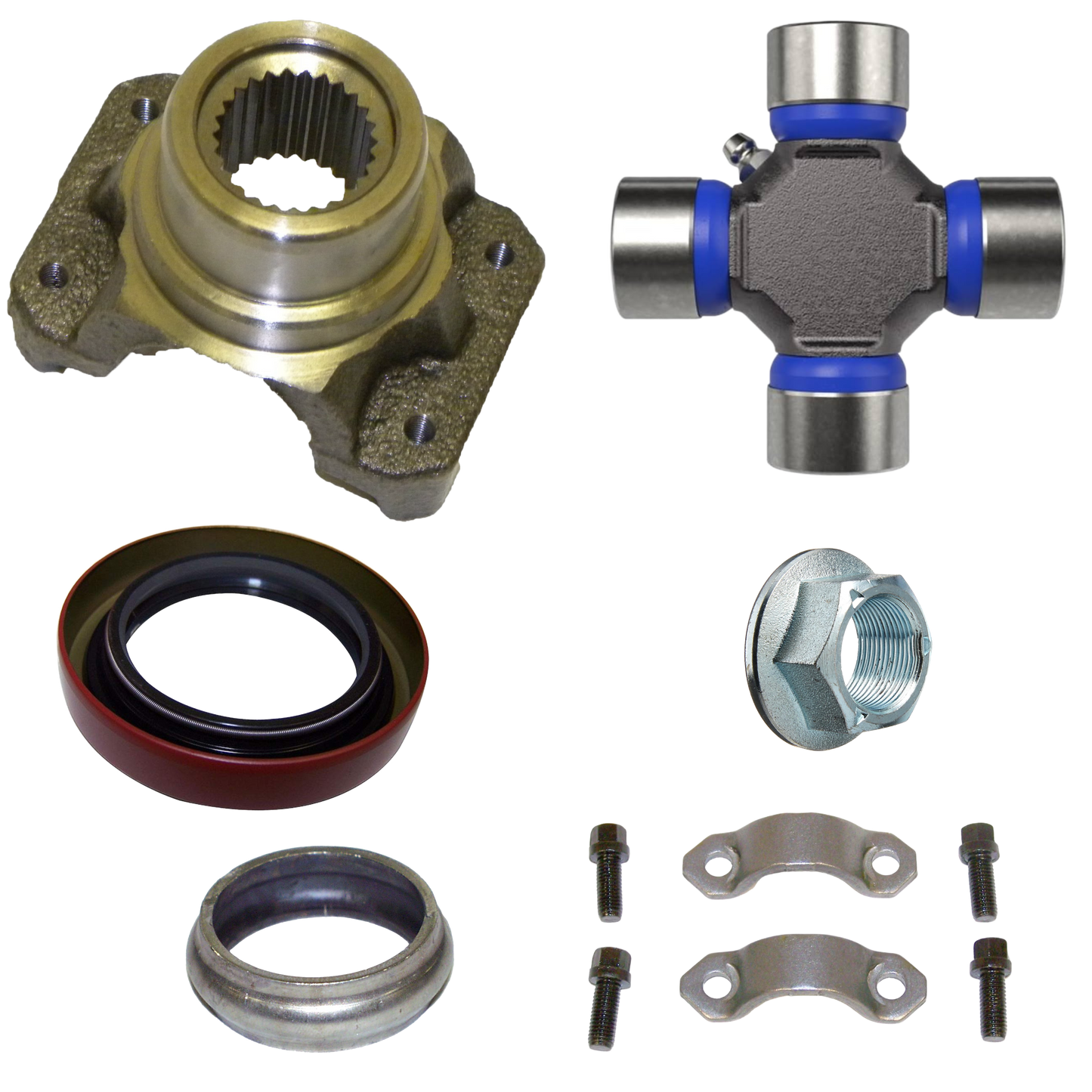

What's Included

  • Pinion yoke (83503318 / 16580.20 / 2-4-4601-1 / YY M35-1310-26S)
  • Genuine Spicer 5-153X 1310 Series U-joint
  • Rear pinion seal (83504946 / 16521.10 / 43085 / YMS470331N)
  • Pinion crush sleeve (3175779 / 16512.59 / 42102 / YSPCS-010)
  • Pinion nut (3182601 / 16584.03 / 44189 / YSPPN-012)
  • U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)

U-Joint Included

This version includes a genuine Spicer 5-153X 1310 Series U-joint. The supplied joint measures 3.219" wide with 1.062" bearing caps and is designed to match the included 1310 Series pinion yoke.

Important Fitment Note

Verify the existing rear axle, pinion yoke, and U-joint configuration before ordering. If the OE U-joint has an overall length of 3.625", use pinion yoke reference 4746835 instead of the 83503318 yoke supplied in this kit.

OE / Replacement / Interchange Numbers

Pinion Yoke: 83503318, 16580.20, 2-4-4601-1, YY M35-1310-26S

U-Joint: Dana-Spicer 5-153X

Rear Pinion Seal: 83504946, 16521.10, 43085, YMS470331N

Pinion Crush Sleeve: 3175779, 16512.59, 42102, YSPCS-010

Pinion Nut: 3182601, 16584.03, 44189, YSPPN-012

U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004

Please verify Jeep model, rear axle type, yoke dimensions, U-joint configuration, and reference numbers before purchase.
