Rear Dana 35 Pinion Yoke Kit for 87–06 Jeep Wrangler YJ TJ | for 1310 Series
Rear Dana 35 Pinion Yoke Kit for 87–06 Jeep Wrangler YJ TJ | for 1310 Series
Couldn't load pickup availability

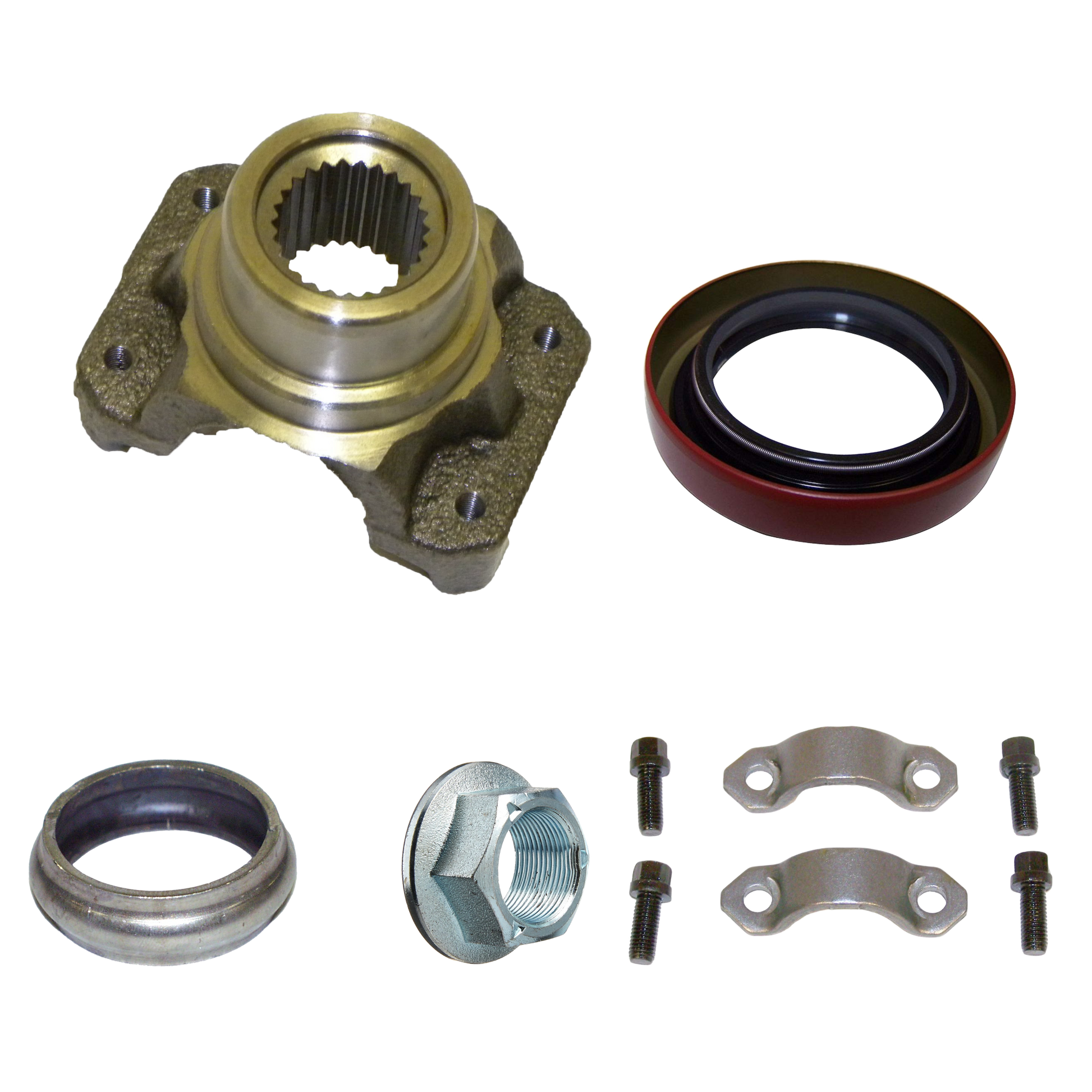

PORC Rear Pinion Yoke Installation Kit for Jeep Dana 35 Axles
Includes Pinion Yoke, Seal, Crush Sleeve, Pinion Nut & U-Joint Strap Hardware
Product Overview
This PORC rear pinion yoke installation kit brings together the major components used when replacing or servicing the pinion yoke on select Jeep models equipped with a Dana 35 rear axle. Built around the 83503318 replacement pinion yoke, the kit also includes the matching rear pinion seal, crush sleeve, pinion nut, and U-joint strap hardware.
Each component is cross-referenced below using common Crown/OE, Omix, Dana-Spicer, and Yukon part numbers to make identification and application verification easier.
Compatibility
- 1997-2006 Jeep Wrangler TJ with Dana 35 rear axle
- 1987-1995 Jeep Wrangler YJ with Dana 35 rear axle and 1310 Series U-joint
- 1984-1996 Jeep Cherokee XJ with Dana 35 rear axle and 2.97" yoke height
- 1986-1992 Jeep Comanche MJ with Dana 35 rear axle and 2.97" yoke height
- 1993-1996 Jeep Grand Cherokee ZJ with Dana 35 rear axle and 2.97" yoke height
Axle Application: Dana 35 rear axle
Yoke Application: 1310 Series, 2.97" yoke height where specified
U-Joint Retention: Strap-and-bolt style
Component Part Number Cross-Reference
Pinion Yoke
Crown / OE: 83503318
Omix: 16580.20
Dana-Spicer: 2-4-4601-1
Yukon: YY M35-1310-26S
Rear Pinion Seal
Crown / OE: 83504946
Omix: 16521.10
Dana-Spicer: 43085
Yukon: YMS470331N
Pinion Crush Sleeve
Crown / OE: 3175779
Omix: 16512.59
Dana-Spicer: 42102
Yukon: YSPCS-010
Pinion Nut
Crown / OE: 3182601
Omix: 16584.03
Dana-Spicer: 44189
Yukon: YSPPN-012
U-Joint Strap Hardware Kit
Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004
Kit Highlights
- Complete rear pinion yoke installation kit for select Jeep Dana 35 rear axle applications
- Includes the pinion yoke along with the related seal, crush sleeve, pinion nut, and strap-style U-joint hardware
- 1310 Series pinion yoke references 83503318, 16580.20, 2-4-4601-1, and YY M35-1310-26S
- Rear pinion seal references 83504946, 16521.10, 43085, and YMS470331N
- Crush sleeve references 3175779, 16512.59, 42102, and YSPCS-010
- Pinion nut references 3182601, 16584.03, 44189, and YSPPN-012
- U-joint strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004
What's Included
- Pinion yoke (83503318 / 16580.20 / 2-4-4601-1 / YY M35-1310-26S)
- Rear pinion seal (83504946 / 16521.10 / 43085 / YMS470331N)
- Pinion crush sleeve (3175779 / 16512.59 / 42102 / YSPCS-010)
- Pinion nut (3182601 / 16584.03 / 44189 / YSPPN-012)
- U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)
Important Fitment Note
Verify the existing yoke and U-joint configuration before ordering. If the OE U-joint has a length of 3.625", use pinion yoke reference 4746835 instead of 83503318.
OE / Replacement / Interchange Numbers
Pinion Yoke: 83503318, 16580.20, 2-4-4601-1, YY M35-1310-26S
Rear Pinion Seal: 83504946, 16521.10, 43085, YMS470331N
Pinion Crush Sleeve: 3175779, 16512.59, 42102, YSPCS-010
Pinion Nut: 3182601, 16584.03, 44189, YSPPN-012
U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004
Please verify Jeep model, rear axle type, yoke dimensions, U-joint configuration, and reference numbers before purchase.
