Rear Chrysler 8.25 Pinion Yoke Kit w/ 1310 U-Joint | 3" | 97-01 Cherokee XJ
Rear Chrysler 8.25 Pinion Yoke Kit w/ 1310 U-Joint | 3" | 97-01 Cherokee XJ
Couldn't load pickup availability
PORC Rear Chrysler 8.25 Pinion Yoke Kit with Spicer 1310 U-Joint | 3" Yoke
27-Spline 1310 Pinion Yoke with Spicer 5-153X U-Joint, Rear Pinion Seal, Crush Sleeve & Strap Hardware
Product Overview
This PORC rear Chrysler 8.25 pinion yoke kit provides a complete 1310 Series service package for 1997-2001 Jeep Cherokee XJ models equipped with a Chrysler 8.25 rear axle and the later 3.00" pinion yoke configuration.
Built around the 52068839 rear pinion yoke, this kit uses a 27-spline, 3.00" tall, strap-and-bolt-style yoke and includes a genuine Dana-Spicer 5-153X 1310 Series U-joint.
The included Spicer U-joint measures approximately 3.219" wide with 1.062" bearing caps and is correctly matched to the supplied yoke. The kit also includes the matching rear pinion seal, pinion crush sleeve, and U-joint strap hardware.
Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below where confirmed to make component identification and application verification easier.
Compatibility
- 1997-2001 Jeep Cherokee XJ with Chrysler 8.25 rear axle
Axle Application: Chrysler 8.25 rear axle
Yoke Height: 3.00"
Spline Count: 27 spline
U-Joint Series: 1310 Series
Included U-Joint: Dana-Spicer 5-153X
U-Joint Retention: Strap-and-bolt style
U-Joint Width: Approximately 3.219"
Bearing Cap Diameter: Approximately 1.062"
Component Part Number Cross-Reference
3.00" Pinion Yoke
Crown / OE: 52068839
1310 Series U-Joint
Dana-Spicer: 5-153X
Series: 1310
Width: 3.219"
Bearing Cap Diameter: 1.062"
Type: Greasable
Rear Pinion Seal
Crown / OE: 52067595
Dana-Spicer: 47467
Yukon: YMS8516N
Pinion Crush Sleeve
Crown / OE: 3507575
Dana-Spicer: 42102
Yukon: YSPCS-010
U-Joint Strap Hardware Kit
Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004
Kit Highlights
- Complete rear Chrysler 8.25 pinion yoke service kit configured around the later 3.00" yoke
- Designed specifically for 1997-2001 Jeep Cherokee XJ models with Chrysler 8.25 rear axle
- Includes genuine Dana-Spicer 5-153X greasable 1310 Series U-joint
- Includes 27-spline 1310 Series strap-style pinion yoke, U-joint, rear pinion seal, crush sleeve, and strap hardware
- Pinion yoke reference 52068839
- Rear pinion seal references 52067595, Dana-Spicer 47467, and Yukon YMS8516N
- Crush sleeve references 3507575, Dana-Spicer 42102, and Yukon YSPCS-010
- Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004

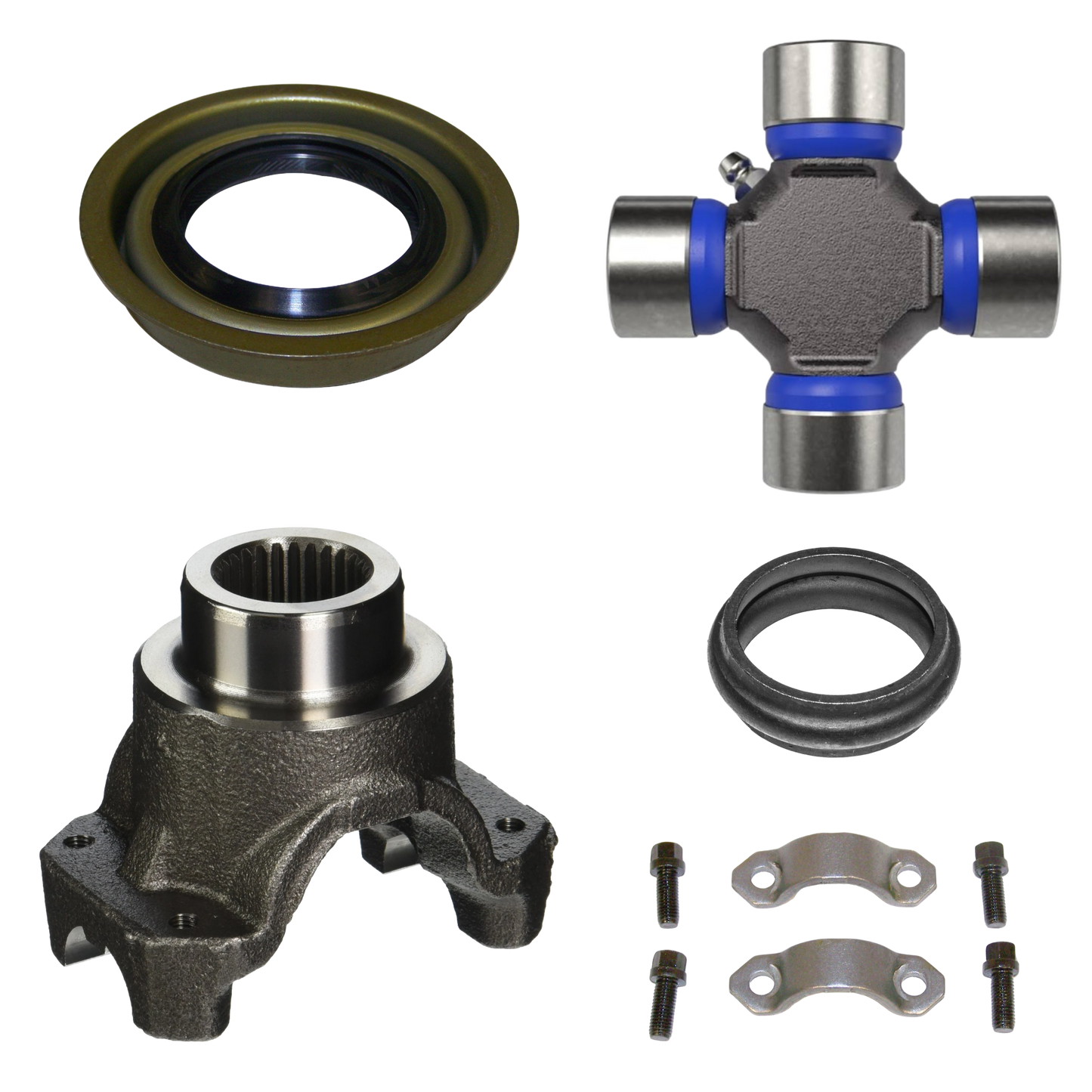

What's Included
- 3.00" 27-spline 1310 Series rear pinion yoke (52068839)
- Genuine Dana-Spicer 5-153X 1310 Series U-joint
- Rear pinion seal (52067595 / 47467 / YMS8516N)
- Pinion crush sleeve (3507575 / 42102 / YSPCS-010)
- U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)
Spicer 1310 U-Joint Included
This version includes a genuine Dana-Spicer 5-153X 1310 Series U-joint. The supplied joint measures approximately 3.219" wide with 1.062" bearing caps and is correctly sized for the included 3.00" Chrysler 8.25 pinion yoke.
3.00" Yoke Configuration
This kit is built around the 3.00" tall 52068839 pinion yoke. Chrysler 8.25 rear axles were also used with other yoke heights, so confirming the existing yoke configuration before ordering is important.
Important Fitment Note
This PORC kit is marketed specifically for 1997-2001 Jeep Cherokee XJ models equipped with the Chrysler 8.25 rear axle and compatible 3.00" yoke configuration. Verify the rear axle, yoke height, spline count, and U-joint dimensions before ordering.
OE / Replacement / Interchange Numbers
3.00" Pinion Yoke: 52068839
U-Joint: Dana-Spicer 5-153X
Rear Pinion Seal: 52067595, 47467, YMS8516N
Pinion Crush Sleeve: 3507575, 42102, YSPCS-010
U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004
Please verify Jeep model, rear axle type, yoke height, spline count, U-joint dimensions, and reference numbers before purchase.
