PORC Rear Chrysler 8.25 Pinion Yoke Kit | 1310 | 3" Yoke
27-Spline 1310 Pinion Yoke with Rear Pinion Seal, Crush Sleeve & U-Joint Strap Hardware
Product Overview
This PORC rear Chrysler 8.25 pinion yoke kit provides the major components used when replacing or servicing the rear pinion yoke on 1997-2001 Jeep Cherokee XJ models equipped with a Chrysler 8.25 rear axle.
Built around the 52068839 rear pinion yoke, this kit is specifically configured around the later 3.00" tall, 27-spline yoke. The yoke uses a 1310 Series strap-and-bolt U-joint retention design and accepts a compatible 1310 Series U-joint measuring approximately 3.219" wide with 1.062" bearing caps.
The kit also includes the matching rear pinion seal, pinion crush sleeve, and U-joint strap hardware. A pinion nut is intentionally not included with this package.
Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below where confirmed to make component identification and application verification easier.
Compatibility
- 1997-2001 Jeep Cherokee XJ with Chrysler 8.25 rear axle
Axle Application: Chrysler 8.25 rear axle
Yoke Height: 3.00"
Spline Count: 27 spline
U-Joint Series: 1310 Series
U-Joint Retention: Strap-and-bolt style
U-Joint Width: Approximately 3.219"
Bearing Cap Diameter: Approximately 1.062"
Component Part Number Cross-Reference
3.00" Pinion Yoke
Crown / OE: 52068839
Rear Pinion Seal
Crown / OE: 52067595
Dana-Spicer: 47467
Yukon: YMS8516N
Pinion Crush Sleeve
Crown / OE: 3507575
Dana-Spicer: 42102
Yukon: YSPCS-010
U-Joint Strap Hardware Kit
Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004
Kit Highlights
- Complete rear Chrysler 8.25 pinion yoke service kit configured around the later 3.00" yoke
- Designed specifically for 1997-2001 Jeep Cherokee XJ models with Chrysler 8.25 rear axle
- Includes 27-spline 1310 Series strap-style pinion yoke, rear pinion seal, crush sleeve, and strap hardware
- Pinion yoke reference 52068839
- Rear pinion seal references 52067595, Dana-Spicer 47467, and Yukon YMS8516N
- Crush sleeve references 3507575, Dana-Spicer 42102, and Yukon YSPCS-010
- Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004

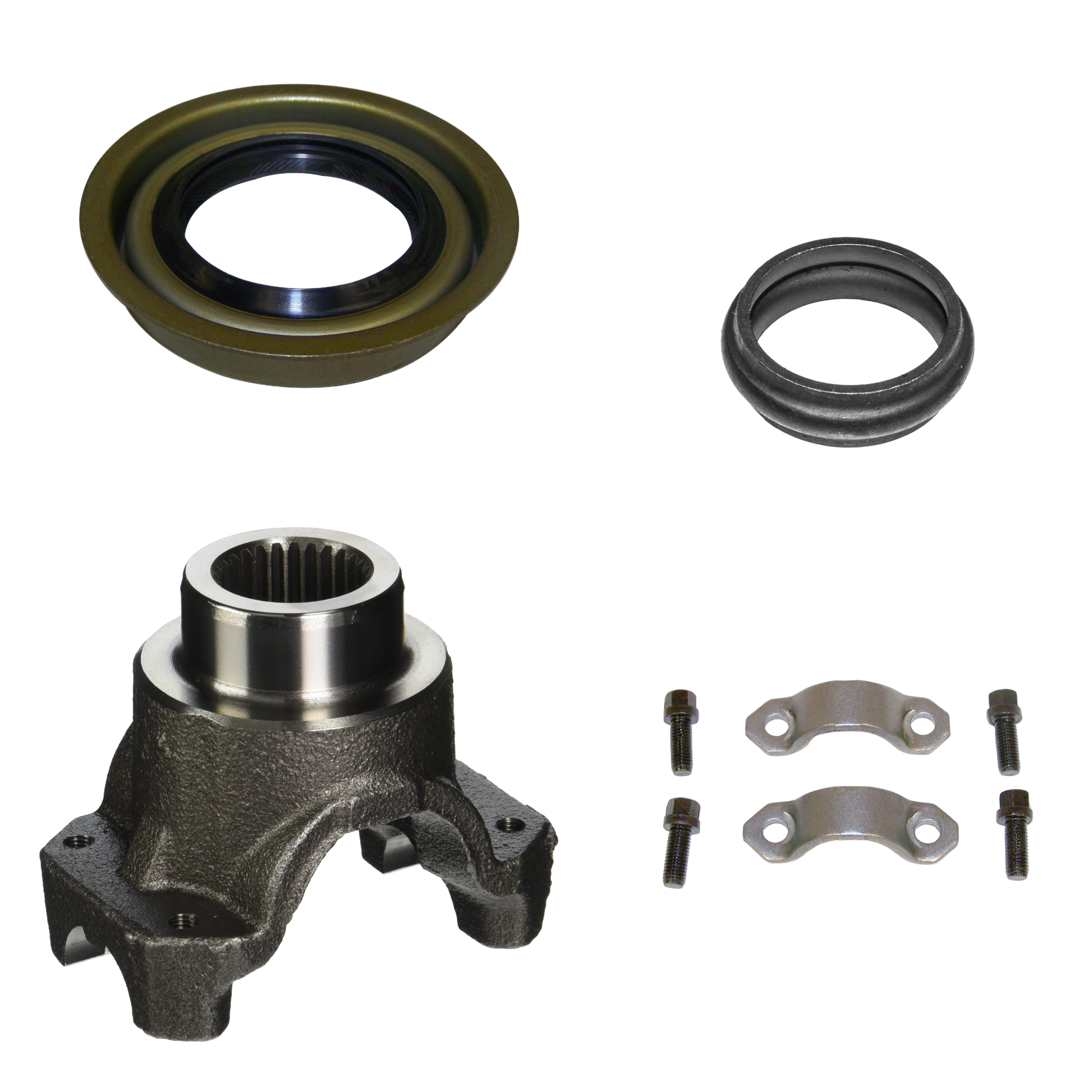

What's Included
- 3.00" 27-spline 1310 Series rear pinion yoke (52068839)
- Rear pinion seal (52067595 / 47467 / YMS8516N)
- Pinion crush sleeve (3507575 / 42102 / YSPCS-010)
- U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)
3.00" Yoke Configuration
This kit is built around the 3.00" tall 52068839 pinion yoke. The Chrysler 8.25 was also used with other yoke heights, so verifying the existing yoke configuration before ordering is important.
U-Joint Not Included
This listing does not include the U-joint. The included yoke is designed for a compatible 1310 Series U-joint measuring approximately 3.219" wide with 1.062" bearing caps.
Important Fitment Note
This PORC kit is marketed specifically for 1997-2001 Jeep Cherokee XJ models equipped with the Chrysler 8.25 rear axle and compatible 3.00" yoke configuration. Verify the rear axle, yoke height, spline count, and U-joint dimensions before ordering.
OE / Replacement / Interchange Numbers
3.00" Pinion Yoke: 52068839
Rear Pinion Seal: 52067595, 47467, YMS8516N
Pinion Crush Sleeve: 3507575, 42102, YSPCS-010
U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004
Please verify Jeep model, rear axle type, yoke height, spline count, U-joint dimensions, and reference numbers before purchase.
