PORC Off Road Products
HD Front Dana 44 Pinion Yoke Kit w/ 1310 U-Joint | 71-80 Jeep SJ & J-Series
HD Front Dana 44 Pinion Yoke Kit w/ 1310 U-Joint | 71-80 Jeep SJ & J-Series
Couldn't load pickup availability
PORC HD Front Dana 44 Pinion Yoke Kit with Spicer 1310 U-Joint
Heavy-Duty 1310 U-Bolt Yoke with Spicer 5-153X U-Joint, Front Pinion Seal, Pinion Nut & U-Bolt Hardware
Product Overview
This PORC heavy-duty front Dana 44 pinion yoke kit provides a complete 1310 Series U-bolt-style yoke setup for 1971-1980 Jeep SJ and J-Series applications equipped with a compatible Dana 44 front axle.
Built around the J0935685 26-spline pinion yoke, this version also includes a genuine Dana-Spicer 5-153X 1310 Series U-joint. The U-bolt-style retention system secures the joint directly to the yoke and provides a straightforward heavy-duty alternative to conventional strap-and-bolt retention.
The included Spicer U-joint measures approximately 3.219" wide with 1.062" bearing caps and is matched to the supplied yoke. The kit also includes the matching front pinion seal, pinion nut, and U-bolt retaining hardware.
This package works well for restoration, drivetrain service, axle rebuilds, and modified off-road builds using the compatible Dana 44 front axle configuration. Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below for easier component verification.
Compatibility
- 1971-1980 Jeep SJ models equipped with a compatible Dana 44 front axle
- 1971-1980 Jeep J-Series models equipped with a compatible Dana 44 front axle
Axle Application: Dana 44 front axle
Yoke Configuration: 26-spline, 1310 Series, U-bolt style
Included U-Joint: Dana-Spicer 5-153X
U-Joint Width: Approximately 3.219"
Bearing Cap Diameter: Approximately 1.062"
Component Part Number Cross-Reference
HD 1310 U-Bolt Pinion Yoke
Crown / OE: J0935685
Omix: 16580.02
Dana-Spicer: 2-4-8091X
1310 Series U-Joint
Dana-Spicer: 5-153X
Series: 1310
Width: 3.219"
Bearing Cap Diameter: 1.062"
Type: Greasable
Front Pinion Seal
Crown / OE: J0998092
Omix: 16521.01
Dana-Spicer: 44895
Yukon: YMS5778
Pinion Nut
Crown / OE: J0801367
Omix: 16584.01
Dana-Spicer: 30185
Yukon: YSPPN-009
1310 U-Bolt Hardware Kit
Crown / OE: A490K
Omix: 16582.01
Dana-Spicer: 2-94-28X
Yukon: YY UB-002
Kit Highlights
- Heavy-duty 1310 Series U-bolt pinion yoke kit for compatible 1971-1980 Jeep SJ and J-Series Dana 44 front axles
- Includes genuine Dana-Spicer 5-153X greasable 1310 Series U-joint
- 26-spline U-bolt-style pinion yoke provides direct U-bolt retention of the supplied U-joint
- Complete package includes pinion yoke, U-joint, front pinion seal, pinion nut, and U-bolt hardware
- Pinion yoke references J0935685, 16580.02, and 2-4-8091X
- Front pinion seal references J0998092, 16521.01, 44895, and YMS5778
- Pinion nut references J0801367, 16584.01, 30185, and YSPPN-009
- U-bolt hardware references A490K, 16582.01, 2-94-28X, and YY UB-002

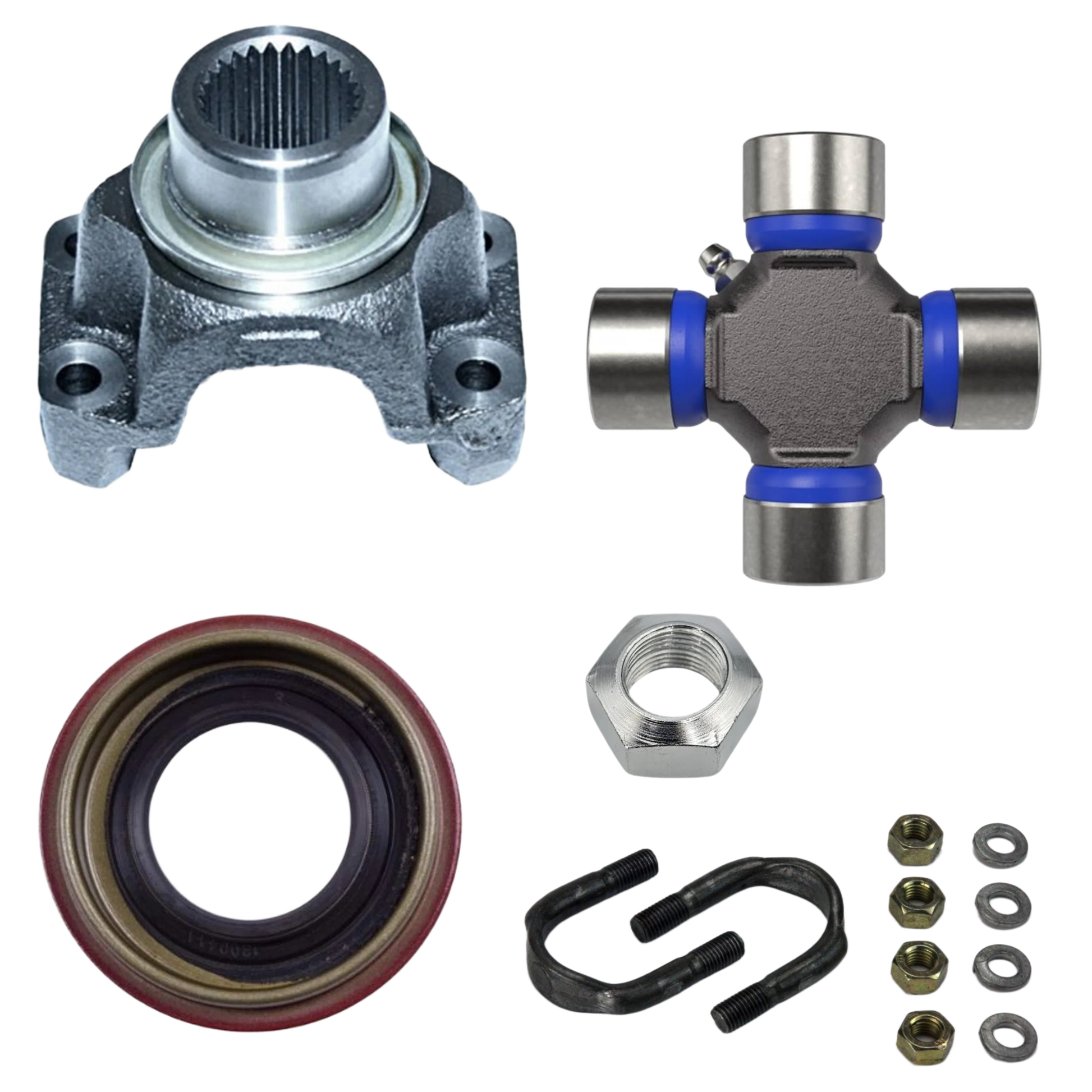

What's Included
- HD 1310 Series U-bolt pinion yoke (J0935685 / 16580.02 / 2-4-8091X)
- Genuine Dana-Spicer 5-153X 1310 Series U-joint
- Front pinion seal (J0998092 / 16521.01 / 44895 / YMS5778)
- Pinion nut (J0801367 / 16584.01 / 30185 / YSPPN-009)
- 1310 U-bolt hardware kit (A490K / 16582.01 / 2-94-28X / YY UB-002)
Spicer 1310 U-Joint Included
This version includes a genuine Dana-Spicer 5-153X 1310 Series U-joint. The supplied U-joint measures approximately 3.219" wide with 1.062" bearing caps and is matched to the included U-bolt-style pinion yoke.
Heavy-Duty U-Bolt Configuration
This kit uses a U-bolt-style pinion yoke instead of conventional strap-and-bolt U-joint retention. Two U-bolts secure the included Spicer 1310 Series U-joint directly to the yoke, making this setup well suited to axle rebuilds, drivetrain service, and modified off-road applications.
Important Fitment Note
This kit is intended for compatible 1971-1980 Jeep SJ and J-Series Dana 44 front axle configurations using the 26-spline 1310 Series yoke setup. Jeep axle and driveline combinations may vary due to model year, previous axle swaps, and other modifications. Verify the front axle, pinion spline count, seal dimensions, yoke configuration, and U-joint dimensions before ordering.
OE / Replacement / Interchange Numbers
HD Pinion Yoke: J0935685, 16580.02, 2-4-8091X
U-Joint: Dana-Spicer 5-153X
Front Pinion Seal: J0998092, 16521.01, 44895, YMS5778
Pinion Nut: J0801367, 16584.01, 30185, YSPPN-009
1310 U-Bolt Hardware Kit: A490K, 16582.01, 2-94-28X, YY UB-002
Please verify Jeep model, front axle type, pinion spline count, seal dimensions, yoke configuration, U-joint dimensions, and reference numbers before purchase.
