PORC Off Road Products

Front Dana 44 Pinion Yoke Kit w/ 1310 U-Joint | 81-91 Jeep SJ & J-Series

Front Dana 44 Pinion Yoke Kit w/ 1310 U-Joint | 81-91 Jeep SJ & J-Series

$102.89 USD
$102.89 USD
Sale Sold out

PORC Front Dana 44 Pinion Yoke Kit with Spicer 1310 U-Joint

Includes 1310 Pinion Yoke, Spicer 5-153X U-Joint, Front Pinion Seal, Pinion Nut & Strap Hardware

Product Overview

This PORC front Dana 44 pinion yoke kit brings together the major components used when replacing or servicing the front pinion yoke on select 1981-1991 Jeep SJ and J-Series applications equipped with a Dana 44 front axle.

Built around the 83503388 26-spline pinion yoke, this version also includes a genuine Spicer 5-153X 1310 Series U-joint. The yoke uses a strap-and-bolt retention design and accepts a 1310 Series U-joint measuring approximately 3.219" wide with 1.062" bearing caps.

The kit also includes the matching front pinion seal, pinion nut, and U-joint strap hardware. Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below to make identification and application verification easier.

Compatibility

  • 1981-1991 Jeep SJ models equipped with a Dana 44 front axle and compatible 1310 Series strap-style pinion yoke configuration
  • 1981-1991 Jeep J-Series models equipped with a Dana 44 front axle and compatible 1310 Series strap-style pinion yoke configuration

Axle Application: Dana 44 front axle

Yoke Configuration: 26-spline, 1310 Series, strap-and-bolt style

U-Joint: Spicer 5-153X

U-Joint Width: Approximately 3.219"

Bearing Cap Diameter: Approximately 1.062"

Component Part Number Cross-Reference

Pinion Yoke

Crown / OE: 83503388
Omix: 16580.07
Dana-Spicer: 2-4-6561-1

1310 Series U-Joint

Dana-Spicer: 5-153X
Series: 1310
Width: 3.219"
Bearing Cap Diameter: 1.062"
Type: Greasable

Front Pinion Seal

Crown / OE: J0998092
Omix: 16521.01
Dana-Spicer: 44895
Yukon: YMS5778

Pinion Nut

Crown / OE: J0801367
Omix: 16584.01
Dana-Spicer: 30185
Yukon: YSPPN-009

U-Joint Strap Hardware Kit

Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004

Kit Highlights

  • Complete front Dana 44 pinion yoke service kit with genuine Spicer 5-153X 1310 Series U-joint
  • Includes 26-spline 1310 Series pinion yoke, U-joint, front pinion seal, pinion nut, and strap-style retaining hardware
  • Pinion yoke references 83503388, 16580.07, and 2-4-6561-1
  • Genuine Spicer 5-153X greasable 1310 Series U-joint included
  • Front pinion seal references J0998092, 16521.01, 44895, and YMS5778
  • Pinion nut references J0801367, 16584.01, 30185, and YSPPN-009
  • Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004

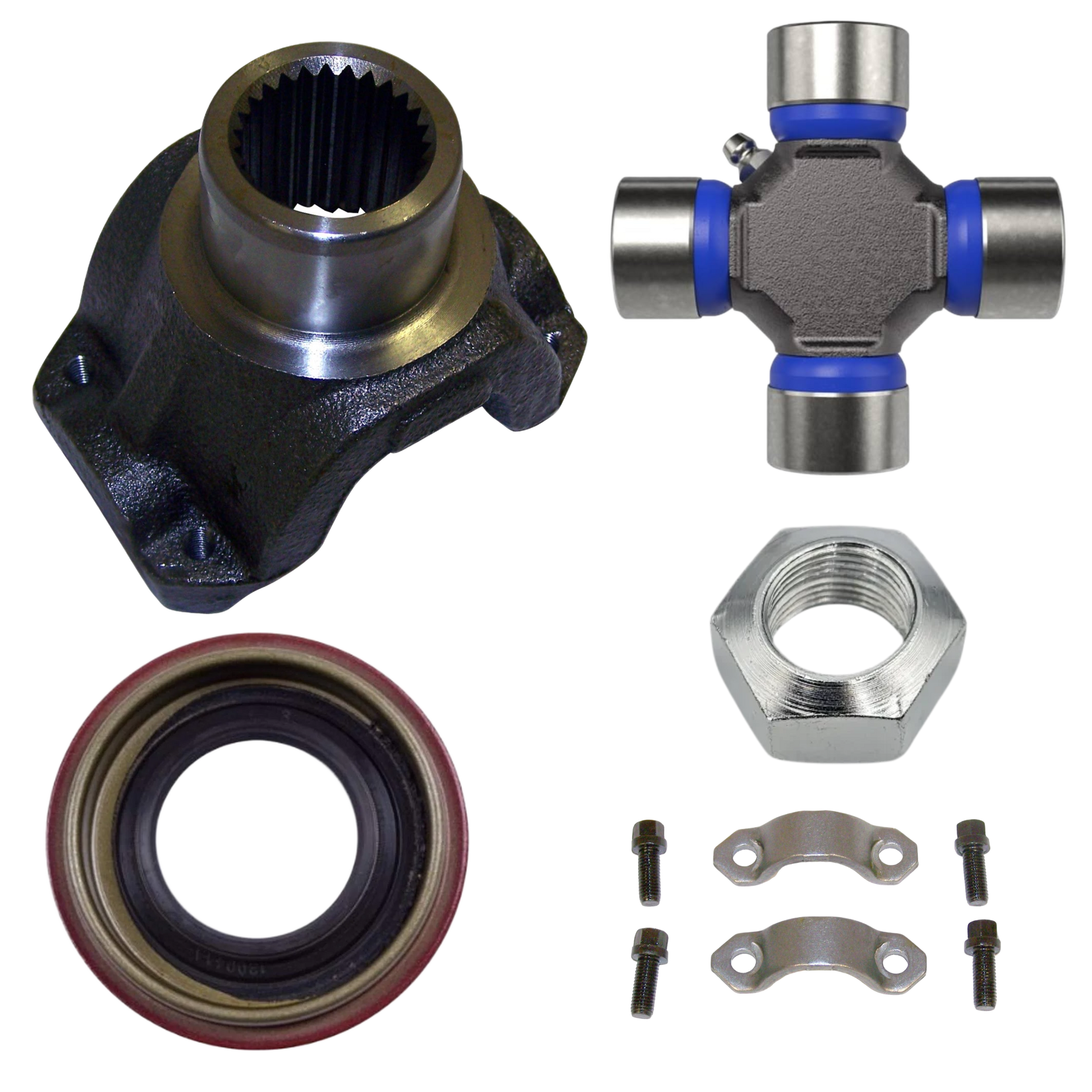

What's Included

  • 1310 Series front pinion yoke (83503388 / 16580.07 / 2-4-6561-1)
  • Genuine Spicer 5-153X 1310 Series U-joint
  • Front pinion seal (J0998092 / 16521.01 / 44895 / YMS5778)
  • Pinion nut (J0801367 / 16584.01 / 30185 / YSPPN-009)
  • U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)

Spicer U-Joint Included

This version includes a genuine Spicer 5-153X 1310 Series U-joint. The supplied joint measures approximately 3.219" wide with 1.062" bearing caps and is matched to the included strap-style Dana 44 front pinion yoke.

Important Fitment Note

This kit is intended for select 1981-1991 Jeep SJ and J-Series Dana 44 front axle applications using the compatible 1310 Series strap-style pinion yoke configuration. Verify the existing front axle, yoke configuration, spline count, and U-joint dimensions before ordering.

OE / Replacement / Interchange Numbers

Pinion Yoke: 83503388, 16580.07, 2-4-6561-1

U-Joint: Dana-Spicer 5-153X

Front Pinion Seal: J0998092, 16521.01, 44895, YMS5778

Pinion Nut: J0801367, 16584.01, 30185, YSPPN-009

U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004

Please verify Jeep model, front axle type, yoke configuration, spline count, U-joint dimensions, and reference numbers before purchase.
