PORC Off Road Products

Front Dana 44 Pinion Yoke Kit w/ 1310 U-Joint | 81-91 Jeep SJ & J-Series

Front Dana 44 Pinion Yoke Kit w/ 1310 U-Joint | 81-91 Jeep SJ & J-Series

$102.89 USD
$102.89 USD
Sale Sold out




PORC Front Dana 30 Pinion Yoke Kit with Spicer 1310 U-Joint

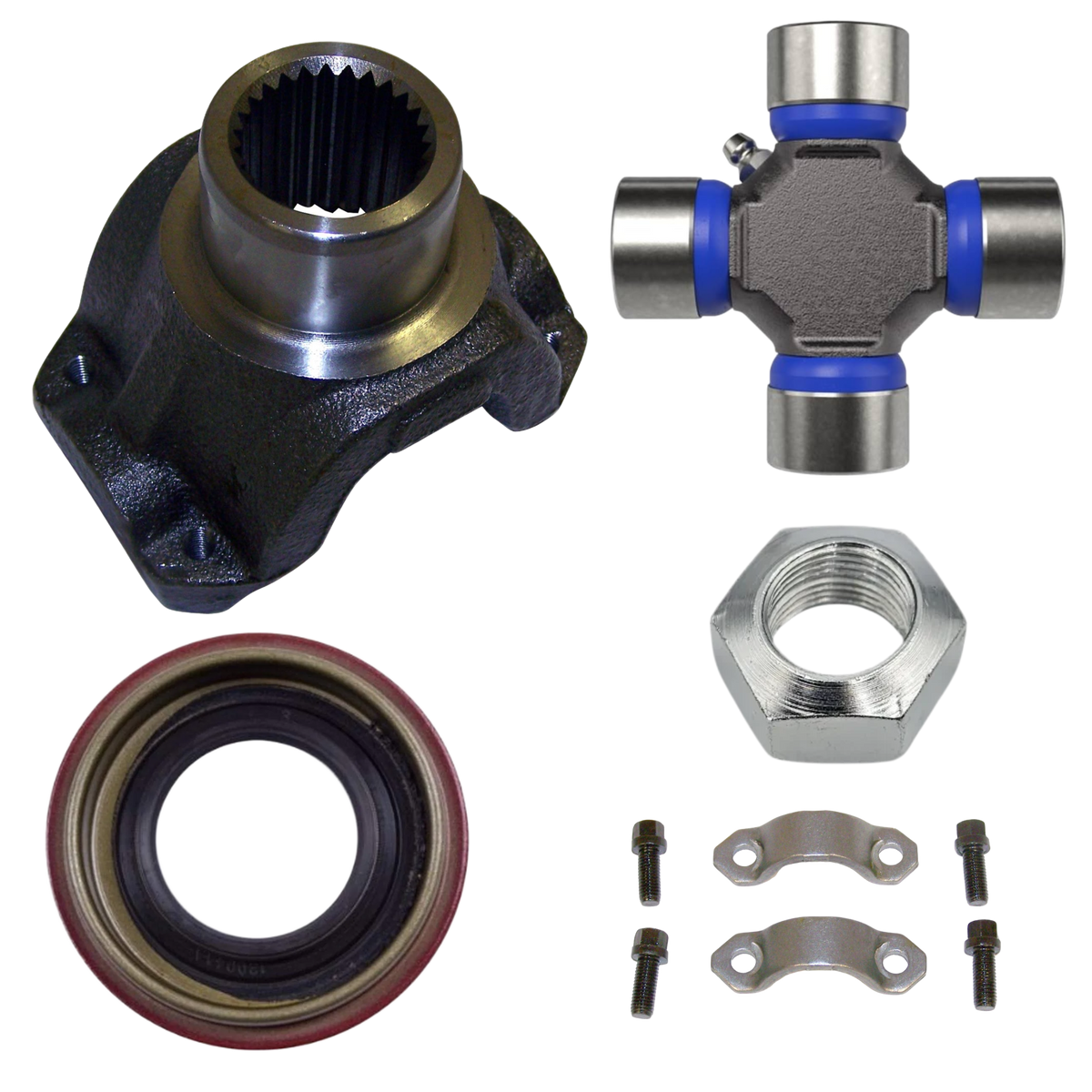

Includes 1310 Pinion Yoke, Spicer 5-153X U-Joint, Front Pinion Seal, Pinion Nut & Strap Hardware



Product Overview


This PORC Dana 30 front pinion yoke kit combines the major components used when replacing or
servicing the front pinion yoke on select Jeep models equipped with a Dana 30 front axle.
Built around the 83503388 1310 Series strap-style pinion yoke, this version also
includes a genuine Spicer 5-153X 1310 Series U-joint.


The included yoke uses a strap-and-bolt U-joint retention design and is matched to a
1310 Series U-joint measuring approximately 3.219" wide with
1.062" bearing caps. The kit also includes the matching front pinion seal,
pinion nut, and U-joint strap hardware.


Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below to make
component identification and application verification easier.


Compatibility



  • 1997-2006 Jeep Wrangler TJ with Dana 30 front axle


  • 1987-1995 Jeep Wrangler YJ with Dana 30 front axle


  • 1986-2001 Jeep Cherokee XJ with Dana 30 front axle


  • 1986-1992 Jeep Comanche MJ with Dana 30 front axle


  • 1993-1998 Jeep Grand Cherokee ZJ with front U-joint driveshaft


  • 1981-1983 Jeep CJ5 with Dana 30 front axle


  • 1981-1986 Jeep CJ7 with Dana 30 front axle


  • 1981-1986 Jeep CJ8 with Dana 30 front axle


Axle Application: Dana 30 front axle


U-Joint Series: 1310 Series


U-Joint Size: 3.219" wide with 1.062" bearing caps


U-Joint Retention: Strap-and-bolt style


Component Part Number Cross-Reference



Pinion Yoke



Crown / OE: 83503388

Omix: 16580.07

Dana-Spicer: 2-4-6561-1




1310 Series U-Joint



Dana-Spicer: 5-153X

Series: 1310

Width: 3.219"

Bearing Cap Diameter: 1.062"

Type: Greasable




Front Pinion Seal



Crown / OE: J0998092

Omix: 16521.01

Dana-Spicer: 44895

Yukon: YMS5778




Pinion Nut



Crown / OE: J0801367

Omix: 16584.01

Dana-Spicer: 30185

Yukon: YSPPN-009




U-Joint Strap Hardware Kit



Crown / OE: 4006698K

Omix: 16582.03

Dana-Spicer: 2-70-18X

Yukon: YY STR-004



Kit Highlights



  • Complete front Dana 30 pinion yoke service kit with genuine Spicer 5-153X 1310 Series U-joint


  • Includes 1310 Series strap-style pinion yoke, U-joint, front pinion seal, pinion nut, and strap hardware


  • Pinion yoke references 83503388, 16580.07, and 2-4-6561-1


  • Genuine Spicer 5-153X greasable 1310 Series U-joint included


  • Front pinion seal references J0998092, 16521.01, 44895, and YMS5778


  • Pinion nut references J0801367, 16584.01, 30185, and YSPPN-009


  • Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004


What's Included


  • 1310 Series front pinion yoke

    (83503388 / 16580.07 / 2-4-6561-1)


  • Genuine Spicer 5-153X 1310 Series U-joint


  • Front pinion seal

    (J0998092 / 16521.01 / 44895 / YMS5778)


  • Pinion nut

    (J0801367 / 16584.01 / 30185 / YSPPN-009)


  • U-joint strap hardware kit

    (4006698K / 16582.03 / 2-70-18X / YY STR-004)


Spicer U-Joint Included


This version includes a genuine Spicer 5-153X 1310 Series U-joint.
The supplied joint measures approximately 3.219" wide with 1.062" bearing caps and is matched
to the included strap-style pinion yoke.


Important Fitment Note


Verify Jeep model, front axle type, pinion yoke configuration, and existing U-joint dimensions
before ordering. Dana 30 front axle configurations vary by model year, and not every Dana 30
uses the same pinion yoke, seal, or internal pinion setup.


OE / Replacement / Interchange Numbers


Pinion Yoke:
83503388, 16580.07, 2-4-6561-1


U-Joint:
Dana-Spicer 5-153X


Front Pinion Seal:
J0998092, 16521.01, 44895, YMS5778


Pinion Nut:
J0801367, 16584.01, 30185, YSPPN-009


U-Joint Strap Hardware Kit:
4006698K, 16582.03, 2-70-18X, YY STR-004


Please verify Jeep model, front axle type, yoke configuration, U-joint dimensions, and reference
numbers before purchase.
