Front Dana 30 Pinion Yoke Kit w/ 1310 U-Joint for 81-06 Jeep CJ YJ TJ XJ MJ

Front Dana 30 Pinion Yoke Kit w/ 1310 U-Joint for 81-06 Jeep CJ YJ TJ XJ MJ

$89.99 USD
$89.99 USD
Sale Sold out

PORC Front Dana 30 Pinion Yoke Kit with Spicer 1310 U-Joint

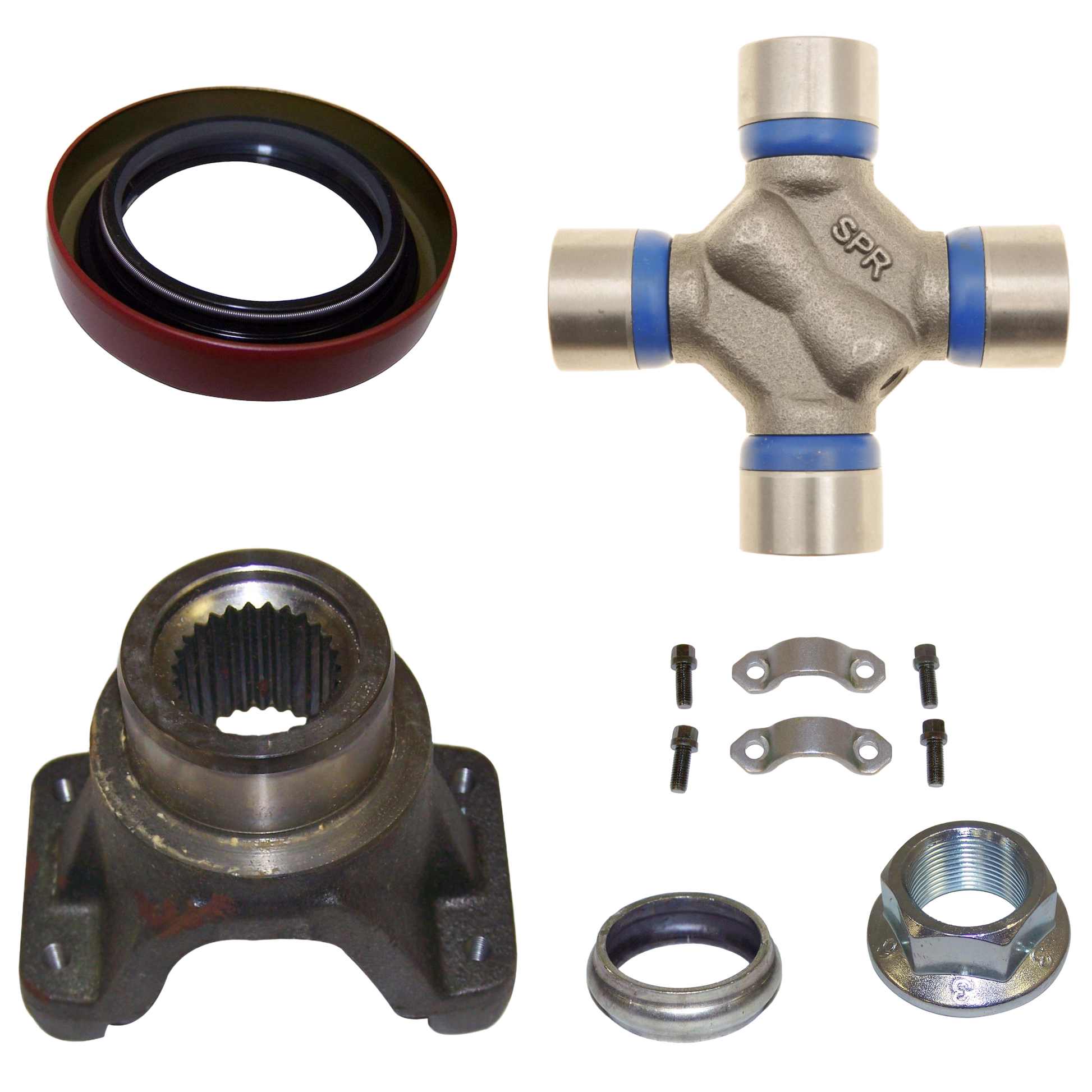

Includes 1310 Pinion Yoke, Spicer 5-153X U-Joint, Front Pinion Seal, Pinion Nut & Strap Hardware

Product Overview

This PORC Dana 30 front pinion yoke kit combines the major components used when replacing or servicing the front pinion yoke on select Jeep models equipped with a Dana 30 front axle. Built around the 83503388 1310 Series strap-style pinion yoke, this version also includes a genuine Spicer 5-153X 1310 Series U-joint.

The included yoke uses a strap-and-bolt U-joint retention design and is matched to a 1310 Series U-joint measuring approximately 3.219" wide with 1.062" bearing caps. The kit also includes the matching front pinion seal, pinion nut, and U-joint strap hardware.

Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below to make component identification and application verification easier.

Compatibility

  • 1997-2006 Jeep Wrangler TJ with Dana 30 front axle
  • 1987-1995 Jeep Wrangler YJ with Dana 30 front axle
  • 1986-2001 Jeep Cherokee XJ with Dana 30 front axle
  • 1986-1992 Jeep Comanche MJ with Dana 30 front axle
  • 1993-1998 Jeep Grand Cherokee ZJ with front U-joint driveshaft
  • 1981-1983 Jeep CJ5 with Dana 30 front axle
  • 1981-1986 Jeep CJ7 with Dana 30 front axle
  • 1981-1986 Jeep CJ8 with Dana 30 front axle

Axle Application: Dana 30 front axle

U-Joint Series: 1310 Series

U-Joint Size: 3.219" wide with 1.062" bearing caps

U-Joint Retention: Strap-and-bolt style

Component Part Number Cross-Reference

Pinion Yoke

Crown / OE: 83503388
Omix: 16580.07
Dana-Spicer: 2-4-6561-1

1310 Series U-Joint

Dana-Spicer: 5-153X
Series: 1310
Width: 3.219"
Bearing Cap Diameter: 1.062"
Type: Greasable

Front Pinion Seal

Crown / OE: J0998092
Omix: 16521.01
Dana-Spicer: 44895
Yukon: YMS5778

Pinion Nut

Crown / OE: J0801367
Omix: 16584.01
Dana-Spicer: 30185
Yukon: YSPPN-009

U-Joint Strap Hardware Kit

Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004

Kit Highlights

  • Complete front Dana 30 pinion yoke service kit with genuine Spicer 5-153X 1310 Series U-joint
  • Includes 1310 Series strap-style pinion yoke, U-joint, front pinion seal, pinion nut, and strap hardware
  • Pinion yoke references 83503388, 16580.07, and 2-4-6561-1
  • Genuine Spicer 5-153X greasable 1310 Series U-joint included
  • Front pinion seal references J0998092, 16521.01, 44895, and YMS5778
  • Pinion nut references J0801367, 16584.01, 30185, and YSPPN-009
  • Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004

What's Included

  • 1310 Series front pinion yoke (83503388 / 16580.07 / 2-4-6561-1)
  • Genuine Spicer 5-153X 1310 Series U-joint
  • Front pinion seal (J0998092 / 16521.01 / 44895 / YMS5778)
  • Pinion nut (J0801367 / 16584.01 / 30185 / YSPPN-009)
  • U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)

Spicer U-Joint Included

This version includes a genuine Spicer 5-153X 1310 Series U-joint. The supplied joint measures approximately 3.219" wide with 1.062" bearing caps and is matched to the included strap-style pinion yoke.

Important Fitment Note

Verify Jeep model, front axle type, pinion yoke configuration, and existing U-joint dimensions before ordering. Dana 30 front axle configurations vary by model year, and not every Dana 30 uses the same pinion yoke, seal, or internal pinion setup.

OE / Replacement / Interchange Numbers

Pinion Yoke: 83503388, 16580.07, 2-4-6561-1

U-Joint: Dana-Spicer 5-153X

Front Pinion Seal: J0998092, 16521.01, 44895, YMS5778

Pinion Nut: J0801367, 16584.01, 30185, YSPPN-009

U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004

Please verify Jeep model, front axle type, yoke configuration, U-joint dimensions, and reference numbers before purchase.
