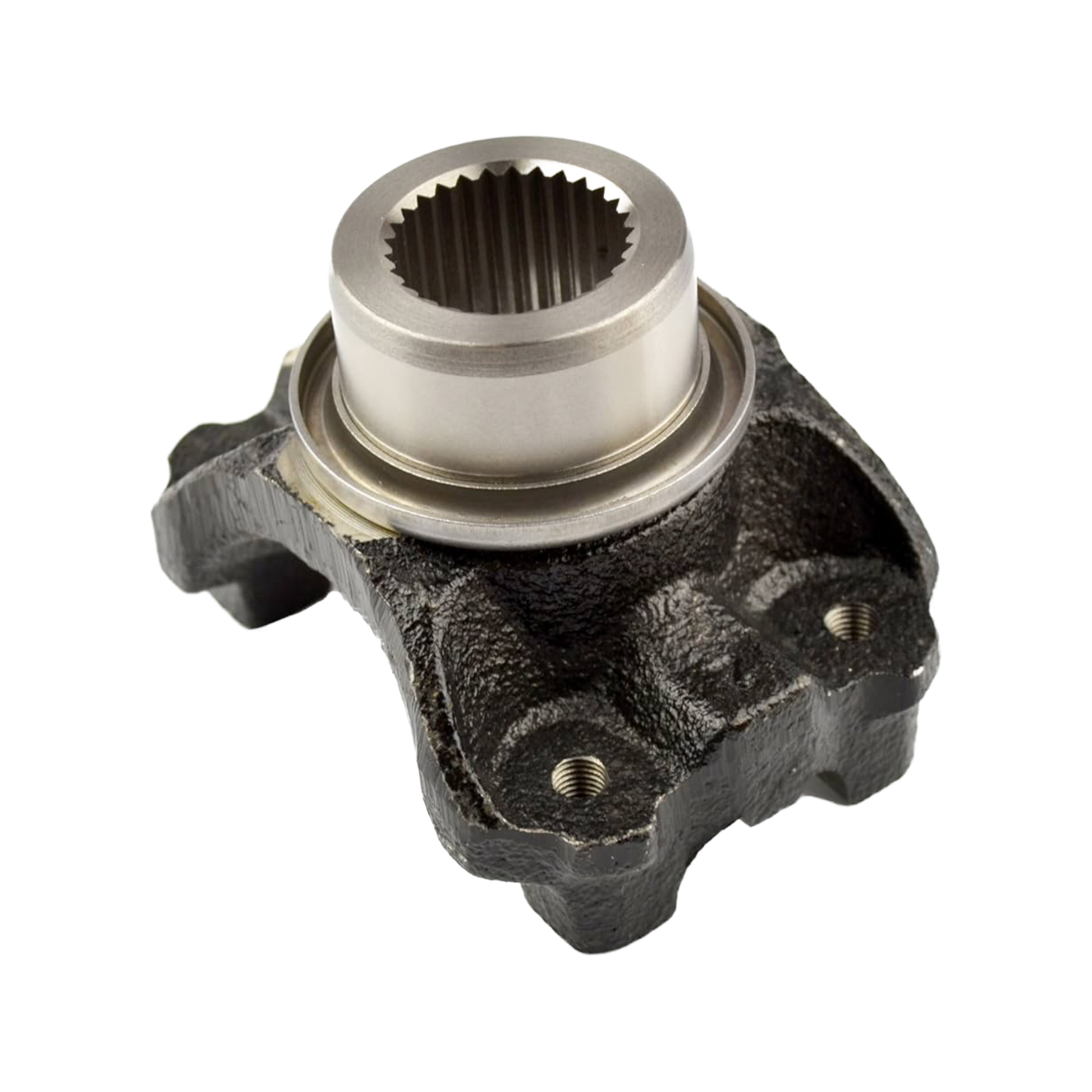

Dana 60/70 1350 29 Spline U Bolt Style Yoke

Dana 60/70 1350 Series Ujoint with U Bolt style retainer's!

Dana Spicer 3-4-5731-1X

• PINION YOKE
• Fits ALL Dana 60, 61, 70 with 29 spline pinion
• 1350 series
• OEM Strap and Bolt style
  • Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

• Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
• SPLINE OD = 1.276
• D = 1.188
• E = 3.625
• Q = 1.500
• R = 1.875
• S = 3.000

Genuine Dana Spicer Pinion Yoke
