Dana/Spicer

1310 Series 26-Spline U-Bolt End Yoke for Dana 30, 44, 50 & Dana 300 | Dana Spicer 2-4-8091X

1310 Series 26-Spline U-Bolt End Yoke for Dana 30, 44, 50 & Dana 300 | Dana Spicer 2-4-8091X

$42.99 USD
$42.99 USD
Sale Sold out

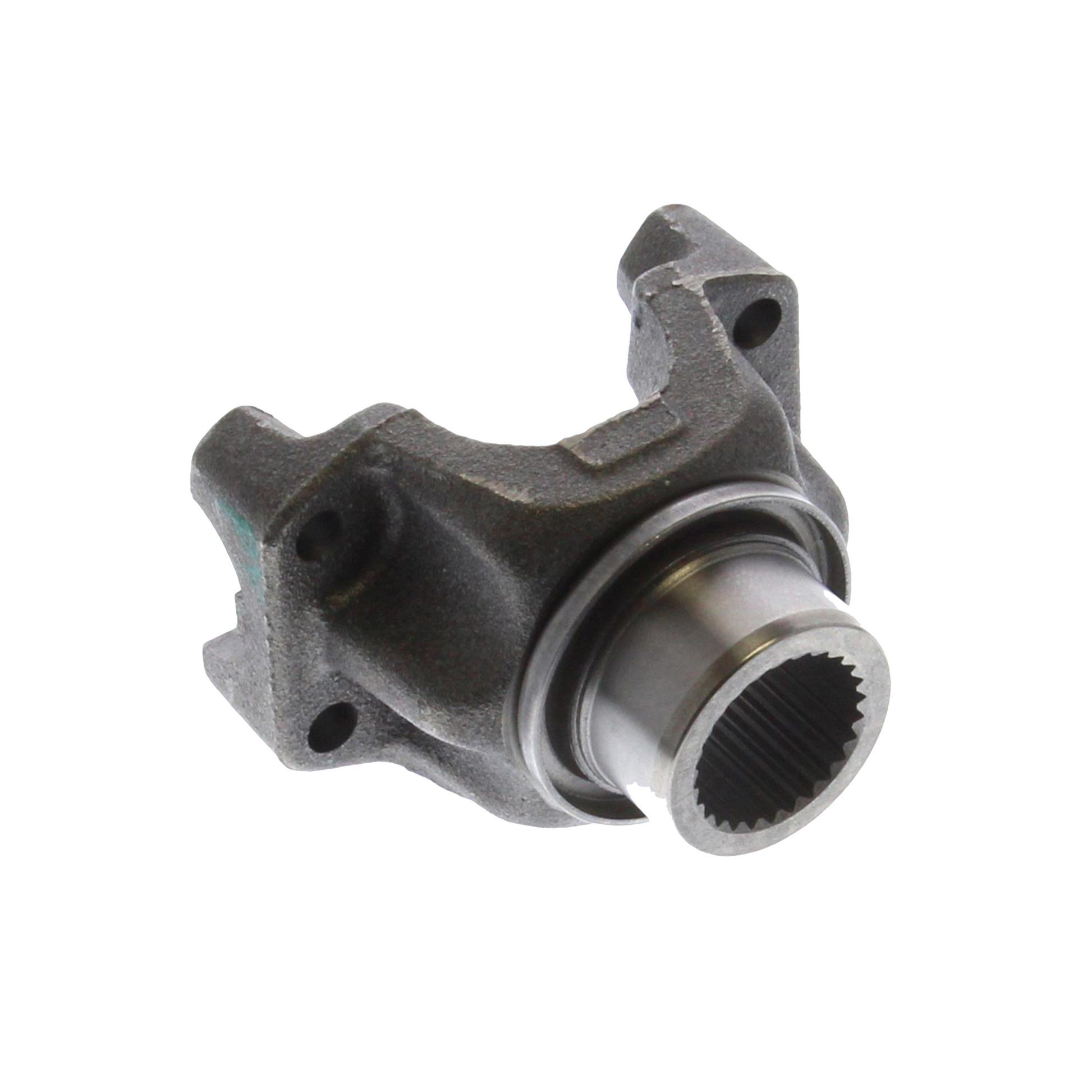

1310 Series 26-Spline U-Bolt End Yoke

Dana Spicer 2-4-8091X • Dana 30, 44, 50 & Dana 300

Product Overview

Dana Spicer 2-4-8091X heavy-duty end yoke for 1310 Series U-joint applications. This yoke features a 26-spline splined-hole configuration with U-bolt-style U-joint retention.

Application Details

  • Dana 30 axle applications
  • Dana 44 axle applications
  • Dana 50 axle applications
  • Dana 300 transfer case front output, 26 spline only
  • Dana 300 transfer case rear output, 26 spline only

Product Details

Brand: Spicer
Spicer Part Number: 2-4-8091X
Product: End Yoke Assembly
Series: 1310
Spline Count: 26
Yoke Style: U-Bolt
Type: Splined Hole
Material: Steel

Dimensions & Specifications

Major Diameter: 1.146"
Yoke Bearing Dimension (D): 1.062"
Outside Yoke Dimension (E): 3.219"
Length Through Hole (Q): 1.500"
Hub Diameter (R): 1.552"
Centerline to End Hub (S): 3.000"
Involute Spline: Y

Additional Information

Quantity: 1
Weight: 1.76 lb
Country of Origin: India

Important Fitment Note

Dana 300 transfer case fitment is specified for 26-spline front or rear output shafts only. Confirm your spline count, 1310 Series U-joint dimensions, U-bolt retention style, and Dana Spicer part number 2-4-8091X before ordering.
