Dana/Spicer

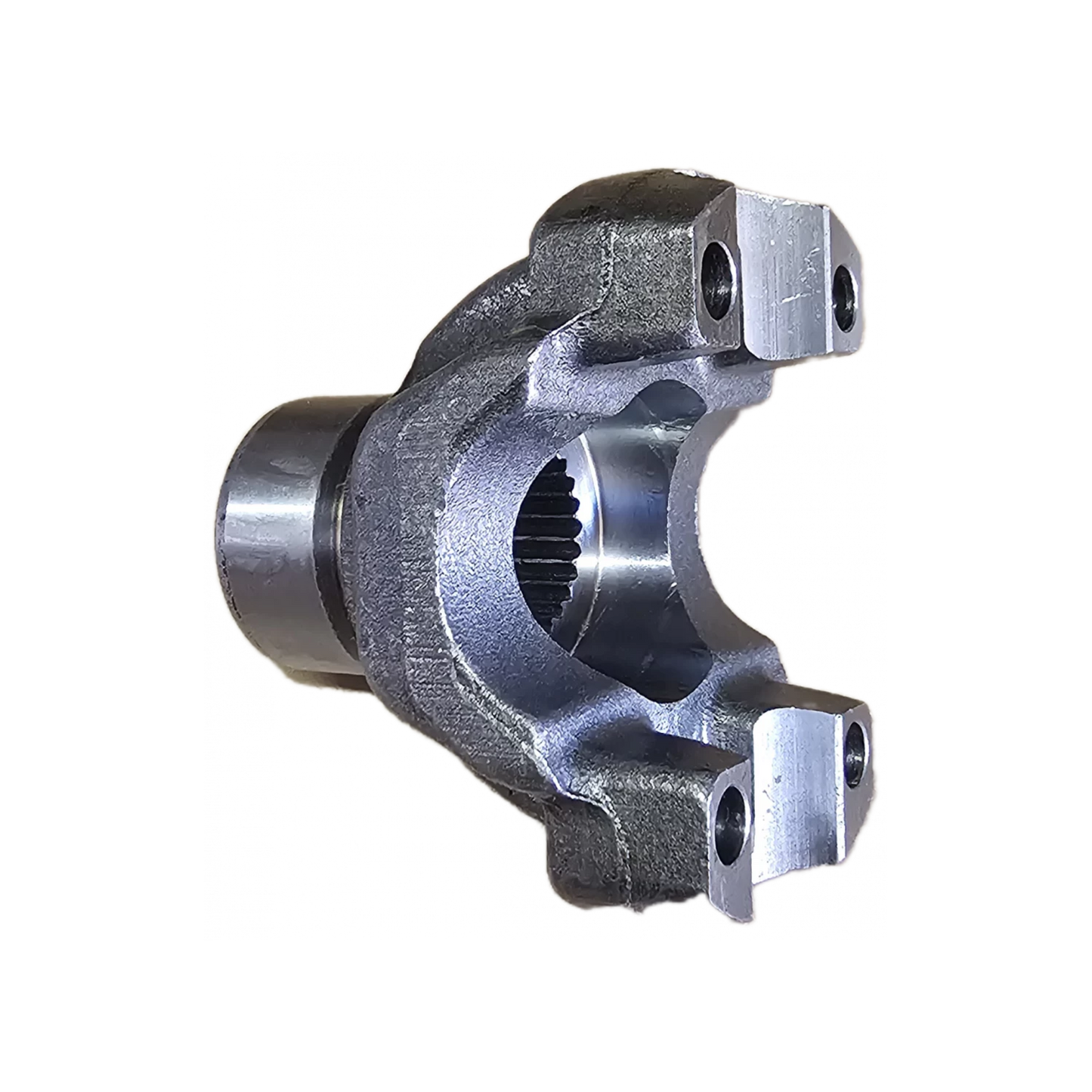

Dana 300 1310 Spicer Style CV Head Yoke
Dana 300 1310 Spicer Style CV Head Yoke
Regular price
$64.99 USD
Regular price
Sale price
$64.99 USD
Quantity
Couldn't load pickup availability
1310 series yoke allows you to install a Spicer style CV head to the front or rear outputs of you Dana 300.
DANA SPICER 2-4-4341
1310 series CV Yoke for JEEP Dana 20 Transfer Case with 26 Spline output
- DANA SPICER 2-4-4341
- Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
- 26 SPLINE
- SPLINE OD = 1.146
- D = 1.062
- E = 3.219
- Q = 1.500
- R = 1.552
- S = 3.000
| Brand | Spicer |
| Series | 1310 |
| Spline Count | 26 |
| Invoice | END YOKE |
| Yoke Style | CV |
| Hub Diameter R | 1.552 |
| C/L To End Hub S | 3.000 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 3.219 |
| Yoke Bearing Dimension (In) D | 1.062 |
| Major Diameter | 1.146 |
| Involute Spline | I |
| VMRS | 024001003 |
| Length Thru Hole Q | 1.500 |
| Material | Steel |
| Joint Angle #1 | 13 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 1.52 LB |
| Harmonization Code | |
| Country of Origin | India |
