PORC Off Road Products

Dana 30 1310 Strap Style Frt Pinion Yoke Kit/81-06 Jeep CJ YJ TJ XJ MJ ZJ

Dana 30 1310 Strap Style Frt Pinion Yoke Kit/81-06 Jeep CJ YJ TJ XJ MJ ZJ

$70.89 USD
$70.89 USD
Sale Sold out

PORC Dana 30 Front 1310 Strap-Style Pinion Yoke Kit

Includes 1310 Pinion Yoke, Front Pinion Seal, Pinion Nut & U-Joint Strap Hardware

Product Overview

This PORC Dana 30 front pinion yoke kit combines the major components used when replacing or servicing the front pinion yoke on select Jeep models equipped with a Dana 30 front axle. Built around the 83503388 1310 Series strap-style pinion yoke, this kit also includes the matching front pinion seal, pinion nut, and U-joint strap hardware.

The included yoke uses a strap-and-bolt U-joint retention design and is configured for a 1310 Series U-joint measuring approximately 3.219" wide with 1.062" bearing caps.

Common Crown/OE, Omix, Dana-Spicer, and Yukon reference numbers are listed below to make component identification and application verification easier.

Compatibility

  • 1997-2006 Jeep Wrangler TJ with Dana 30 front axle
  • 1987-1995 Jeep Wrangler YJ with Dana 30 front axle
  • 1986-2001 Jeep Cherokee XJ with Dana 30 front axle
  • 1986-1992 Jeep Comanche MJ with Dana 30 front axle
  • 1993-1998 Jeep Grand Cherokee ZJ with front U-joint driveshaft
  • 1981-1983 Jeep CJ5 with Dana 30 front axle
  • 1981-1986 Jeep CJ7 with Dana 30 front axle
  • 1981-1986 Jeep CJ8 with Dana 30 front axle

Axle Application: Dana 30 front axle

U-Joint Series: 1310 Series

U-Joint Retention: Strap-and-bolt style

Component Part Number Cross-Reference

Pinion Yoke

Crown / OE: 83503388
Omix: 16580.07
Dana-Spicer: 2-4-6561-1

Front Pinion Seal

Crown / OE: J0998092
Omix: 16521.01
Dana-Spicer: 44895
Yukon: YMS5778

Pinion Nut

Crown / OE: J0801367
Omix: 16584.01
Dana-Spicer: 30185
Yukon: YSPPN-009

U-Joint Strap Hardware Kit

Crown / OE: 4006698K
Omix: 16582.03
Dana-Spicer: 2-70-18X
Yukon: YY STR-004

Kit Highlights

  • Complete front pinion yoke service kit for select Jeep Dana 30 front axle applications
  • Includes 1310 Series strap-style pinion yoke, front pinion seal, pinion nut, and U-joint strap hardware
  • Pinion yoke references Crown/OE 83503388, Omix 16580.07, and Dana-Spicer 2-4-6561-1
  • Front pinion seal references J0998092, 16521.01, 44895, and YMS5778
  • Pinion nut references J0801367, 16584.01, 30185, and YSPPN-009
  • Strap hardware references 4006698K, 16582.03, 2-70-18X, and YY STR-004
  • Designed for a 1310 Series U-joint with approximately 3.219" overall width and 1.062" bearing caps

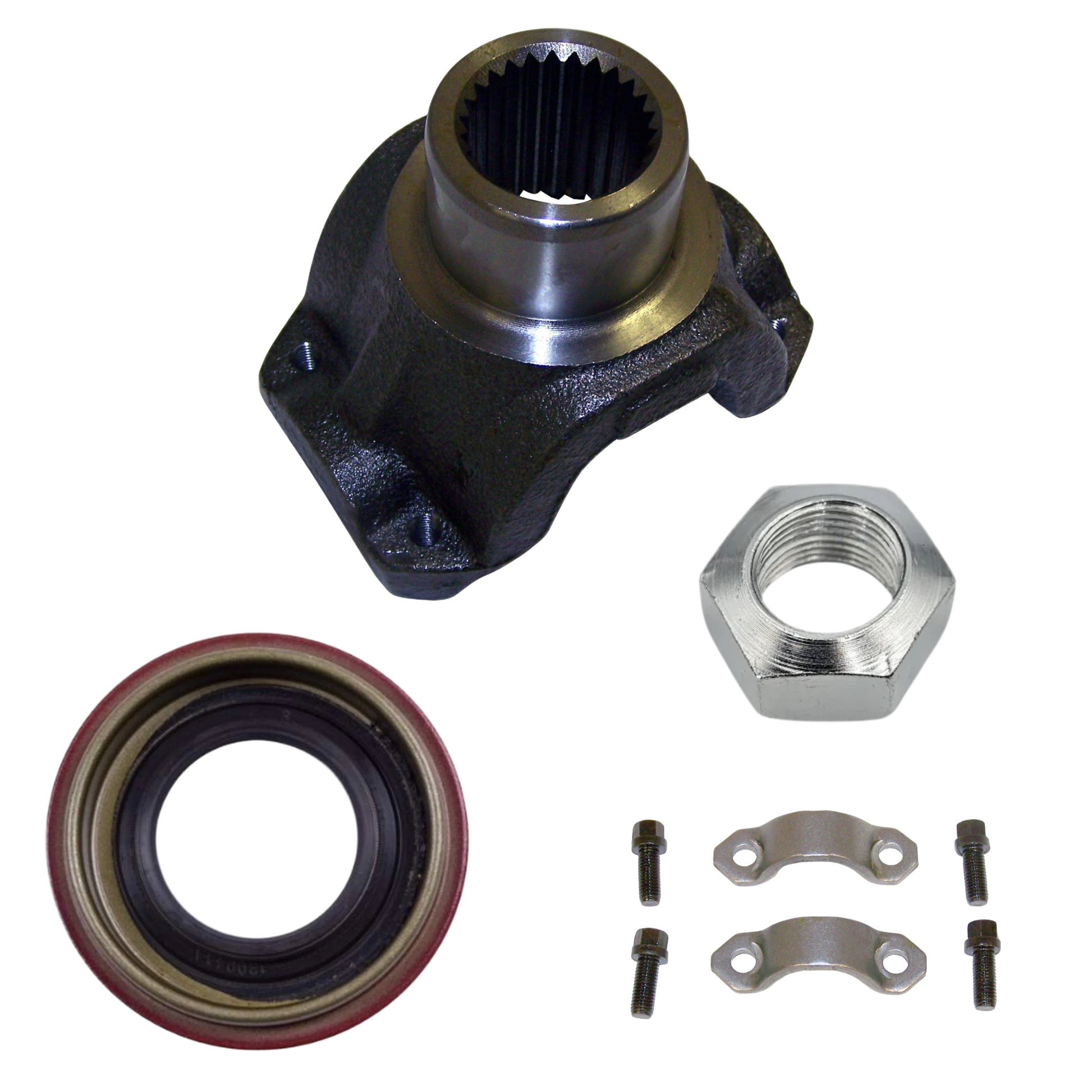

What's Included

  • 1310 Series front pinion yoke (83503388 / 16580.07 / 2-4-6561-1)
  • Front pinion seal (J0998092 / 16521.01 / 44895 / YMS5778)
  • Pinion nut (J0801367 / 16584.01 / 30185 / YSPPN-009)
  • U-joint strap hardware kit (4006698K / 16582.03 / 2-70-18X / YY STR-004)

U-Joint Not Included

This listing does not include the U-joint. The supplied pinion yoke is configured for a compatible 1310 Series U-joint measuring approximately 3.219" wide with 1.062" bearing caps.

Important Fitment Note

Verify Jeep model, front axle type, pinion yoke configuration, and existing U-joint dimensions before ordering. Dana 30 axle configurations vary by model year, and not every Dana 30 uses the same pinion yoke, seal, or internal pinion setup.

OE / Replacement / Interchange Numbers

Pinion Yoke: 83503388, 16580.07, 2-4-6561-1

Front Pinion Seal: J0998092, 16521.01, 44895, YMS5778

Pinion Nut: J0801367, 16584.01, 30185, YSPPN-009

U-Joint Strap Hardware Kit: 4006698K, 16582.03, 2-70-18X, YY STR-004

Please verify Jeep model, front axle type, yoke configuration, U-joint dimensions, and reference numbers before purchase.
