PORC OFF ROAD PRODUCTS

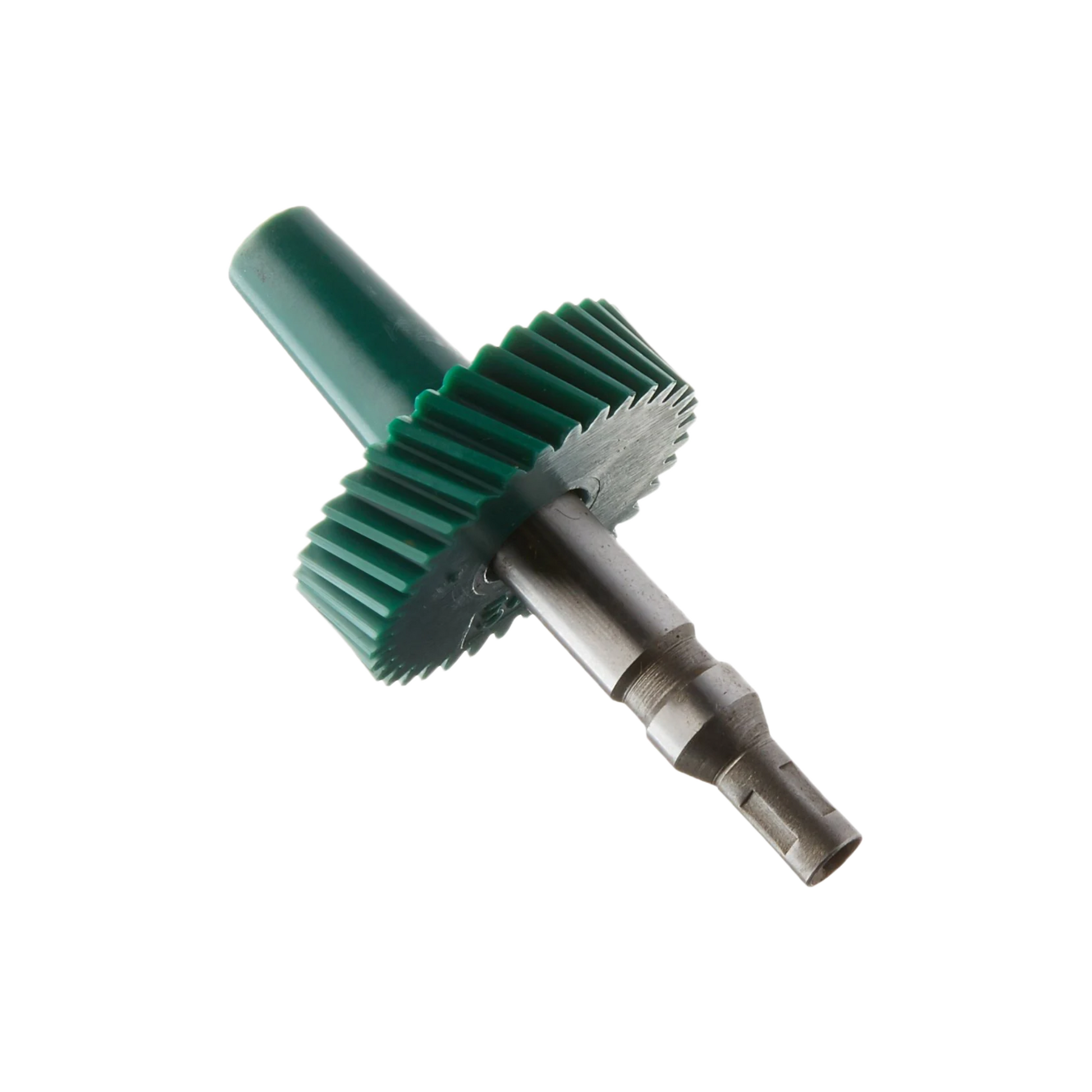

34 Tooth Short Shaft Speedometer Gear
For select Jeep applications equipped with the NP231 transfer case
Tooth Count
34 Tooth
Shaft Style
Short Shaft
OE / Replacement Number
52067634
Interchange
18760.17
Overview
This PORC 34 tooth short shaft speedometer gear is designed for select Jeep vehicles equipped with the NP231 transfer case. It helps correct speedometer readings after changes to tire size or axle gear ratio.
Use the speedometer gear chart below to match your actual tire height and axle ratio to the correct gear tooth count.
Vehicle Compatibility
Jeep Cherokee XJ
1991-2001 • NP231 Transfer Case
1991-2001 • NP231 Transfer Case
Jeep Wrangler YJ
1993-1995 • NP231 Transfer Case
1993-1995 • NP231 Transfer Case
Jeep Wrangler TJ
1997-2006 • NP231 Transfer Case
1997-2006 • NP231 Transfer Case
Fitment Note: Verify transfer case configuration before ordering. Does not fit Rubicon models.
Speedometer Gear Selection Chart
Find your actual tire height in the left column, then follow that row to your axle ratio.
Cells marked 34T indicate applications for this gear.
| Tire | 5.38 | 5.13 | 4.88 | 4.56 | 4.10 | 3.73 | 3.55 |
|---|---|---|---|---|---|---|---|
| 44" | 32T | 31T | 29T | 27T | |||
| 42" | 34T | 32T | 30T | 28T | |||
| 40" | 35T | 34T | 32T | 30T | 27T | ||
| 39" | 36T | 34T | 33T | 31T | 28T | ||
| 38" | 37T | 35T | 34T | 31T | 28T | 26T | |
| 37" | 38T | 36T | 35T | 32T | 29T | 26T | |
| 36" | 39T | 37T | 36T | 33T | 30T | 27T | |
| 35" | 40T | 38T | 37T | 34T | 31T | 28T | 27T |
| 33" | 41T | 39T | 36T | 33T | 30T | 28T | |
| 32" | 40T | 37T | 34T | 31T | 29T | ||
| 31" | 41T | 39T | 35T | 32T | 30T | 26T | |
| 30" | 40T | 36T | 33T | 31T | 27T | ||
| 29" | 41T | 37T | 35T | 32T | 28T | ||
| 28" | 38T | 36T | 33T | 29T |
Measure Before You Order
Tire sizes printed on the sidewall are nominal and may not reflect actual mounted diameter. Measure actual tire height on the vehicle and use that measurement with your axle ratio for the most accurate selection.
Cross Reference
OE / Replacement Number
52067634
Interchange Number
18760.17
What's Included
Quantity 1: 34 Tooth Short Shaft Speedometer Drive Gear
Built to Fit. Easy to Identify.
PORC Off Road Products provides clear fitment information, cross-reference numbers, and application data to help identify the correct replacement part before ordering.
