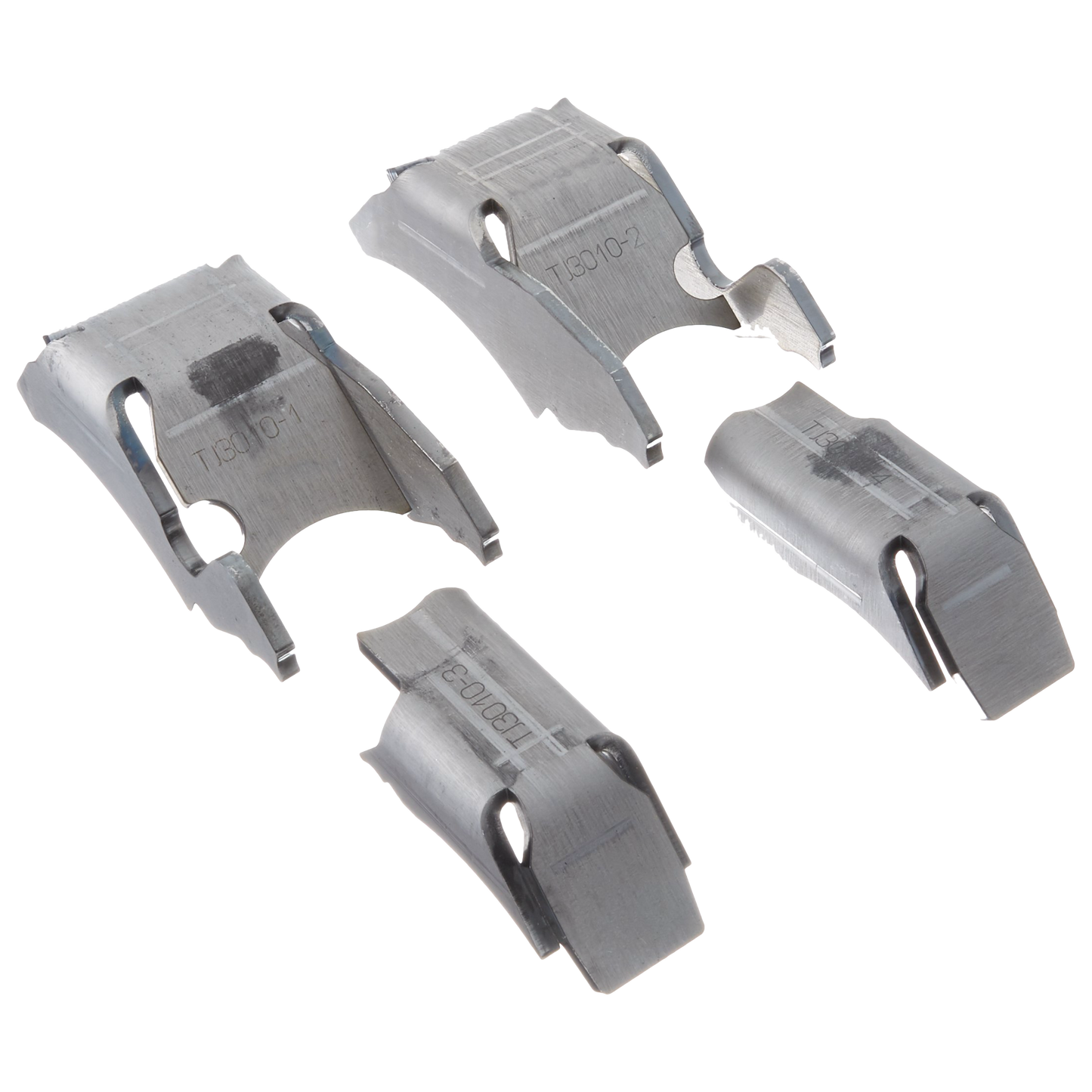

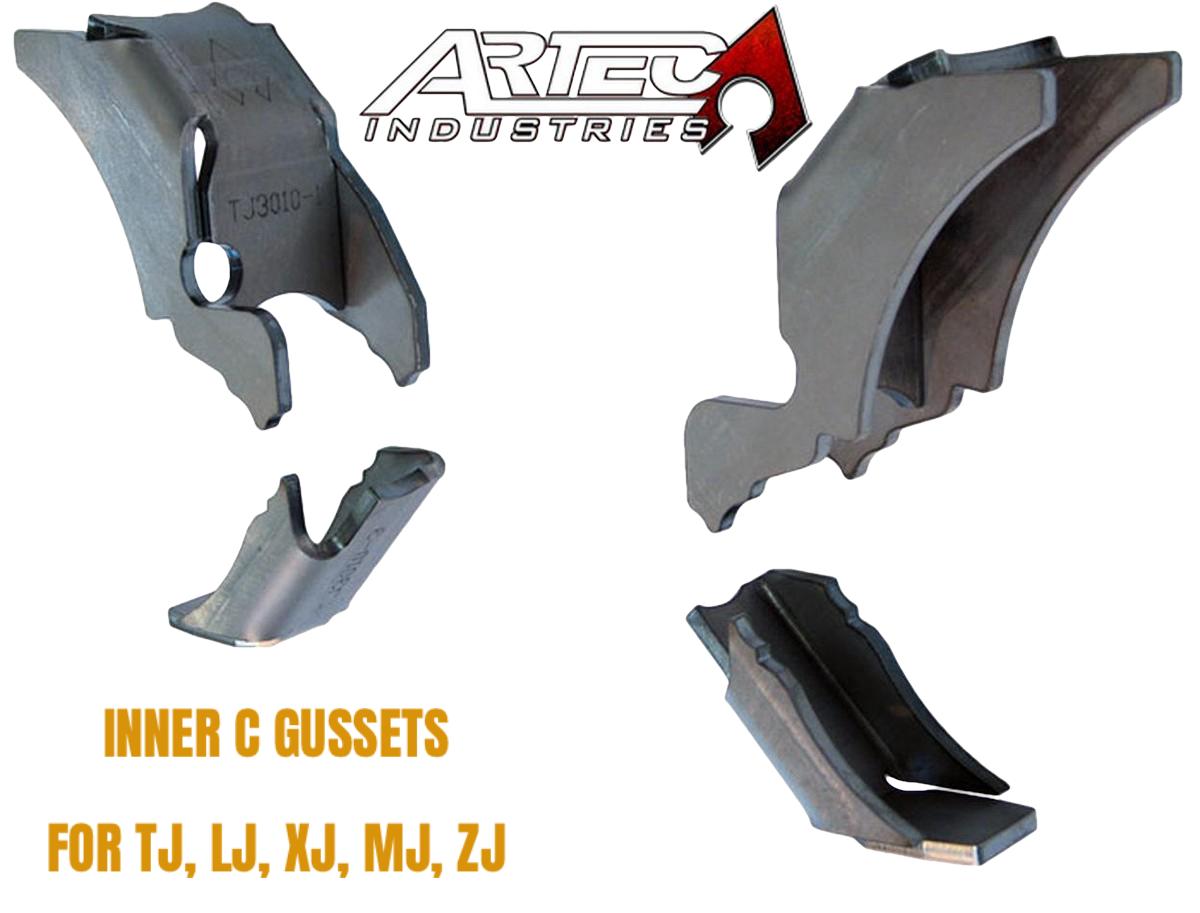

Artec TJ/ZJ/XJ/MJ Dana 30/44 Inner C Gussets TJ3010

Dana 30 Inner C Gussets
Fits TJ, LJ, XJ, MJ, ZJ and TJ/LJ Rubicon D44
These heavy duty gussets are designed to take serious abuse and reinforce your front Dana 30 or Rubicon Dana 44 Inner C's. The 1/4" thick precision cut and formed components of this setup out perform the competition.
INSTALL NOTE: IT IS RECOMMENDED TO REMOVE THE UPPER BALL JOINT PRIOR TO WELDING THESE INNER C GUSSETS.
Features include:
-
1/4" mild steel. Precision CNC cut and bent for great fitment.*
-
Laser etched part numbers for easy installation
-
Designed using CAD files directly from Chrysler for a precision fit in tight area around inner C.
-
Provides valuable reinforcement to an area prone to abuse and flex.
-
Clearanced for stock and aftermarket coil springs
-
Boxed structure offers more rigidity over single plate style gusset
-
Gussets both top and bottom of Inner C for a complete solution.
*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required. Clearancing on the top gussets around the coil spring may be necessary depending on coil spring thickness.
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
